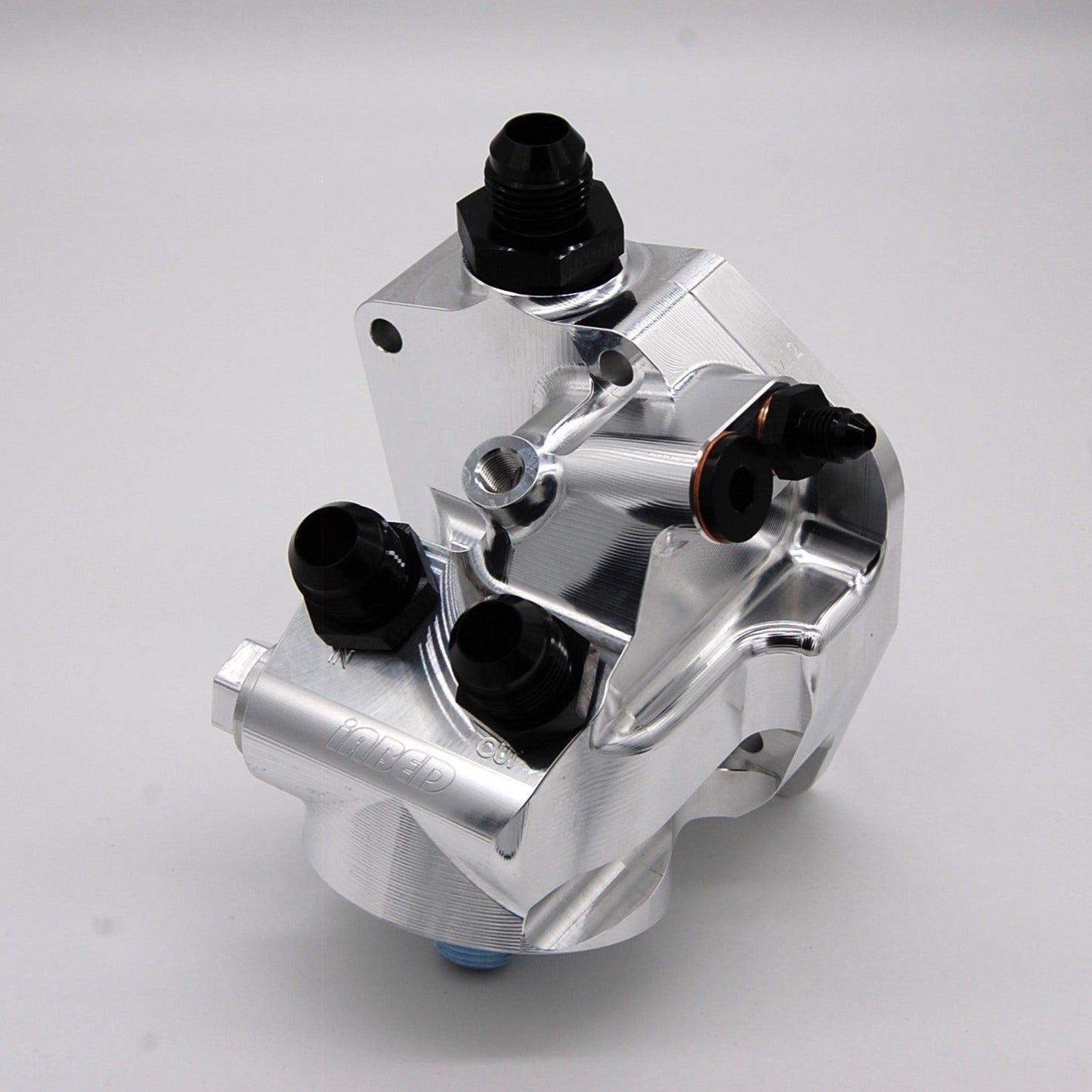

1.8T 20V / 2.0 8V – 06A (4 CYL) OIL FILTER HOUSING W/ BUILT IN THERMOSTAT

The ultimate solution for an oil filter housing for your 06A 1.8T or 2.0. Fits all 06A engines from 1999 till present.

Key features include :

• ¾-16” threaded nipple for any screw on oil filter (Most common being either 06A 1.8T or similar)
• MOCAL 90°C Thermostat incorporated into the housing allowing the installer to not need an additional thermostatic sandwich plate. (an upgrade over 462-635-0021).
• M12 x 1.5 port for turbocharger oil feed.
• 12-AN ORB port for crankcase ventilation
• iABED trap flow baffle integration system
• (2) M10 x 1.0 ports for OEM oil senders
• Compact lightweight design with material removal in non-critical areas to save on weight.

Build of Materials:

• (1) CNC Machined Housing
• (1) MOCAL Thermostat
• (1) ¾-16” Threaded fitting
• (2) AN-10 Male ORB to Union fitting
• (1) M16 x 1.5
• (1) CWM16 copper crush washer
• (1) CWM12 copper crush washer
• (1) Elring Gasket

Options:

• Turbocharger oil feed = M12 x 1.5 to 3-AN Male union = +$7
• Turbocharger oil feed = M12 x 1.5 to 4-AN Male union = +$7
• Crankcase Port = AN-12 ORB to AN-10 Flare Union = +$9
• Crankcase Port = AN-12 ORB to AN-12 Flare Union= +$9
• M7 x 70mm hardware = +$12
• Install oem 06A Piston + Spring = +$20

N.B.
This product requires purchasing an additional air cooled oil cooler (Setrab , Mocal , etc). It can be used in conjunction with the OEM heat exchanger if requested to switch the ¾-16” threaded fitting for an OEM unit.

This product requires the transfer of the OEM Piston + spring set up from the stock 06A 115 405 oil filter housing
