Syvecs standalone ECU comparison
Compare universal ECU options against the engine, fuel system, wiring and calibration plan. Channel types and required software or driver hardware matter more than a simple model-number hierarchy.
Syvecs ECU family overview
-
S7 Plus: 22 general-purpose analogue inputs, 6 ignition drivers and 8 half-bridge outputs.
-

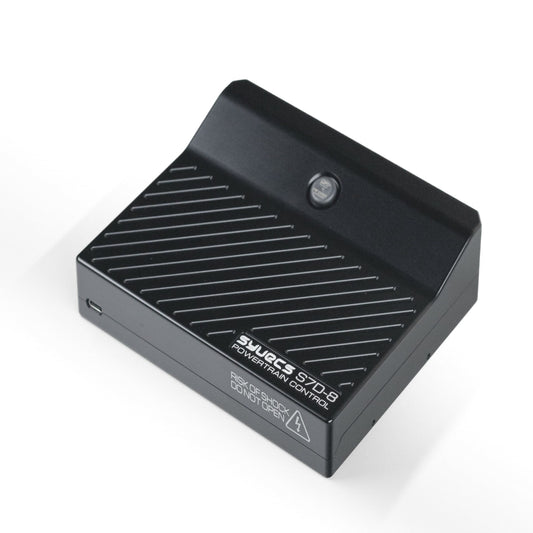

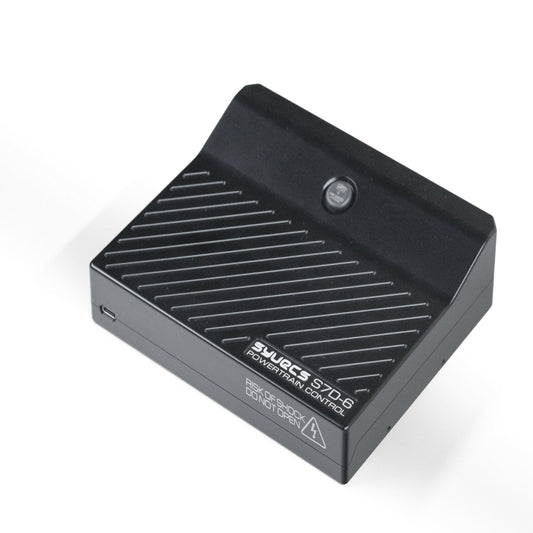

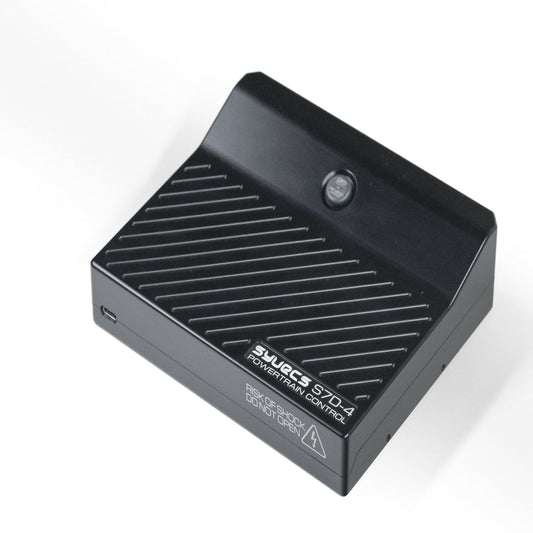

S7D-4, S7D-6 and S7D-8: integrated DI injector outputs in four-, six- and eight-channel versions. Check ignition outputs separately; S7D-8 uses four ignition outputs and its manual specifies wasted-spark pairs for eight-cylinder engines.
-
S8C: the listed S8 specification has 24 general-purpose analogue inputs, 8 ignition drivers and 4 half-bridge outputs. It has a different I/O mix from S7 Plus, not more of every channel type.
-
S12: 28 general-purpose inputs, 12 ignition outputs and 24 fuel-injector outputs; assess the channel allocation and electrical limits against the build.
Direct injection, price and fitment
Syvecs lists optional DI software for S7 Plus, S8 and S12. A DI installation also needs compatible injector-driver hardware and application-specific support. Compare the complete ECU, harness, driver, sensor and calibration cost, not just the bare ECU price.
Need to compare the options? Read our Syvecs ECU buyer guide for channel types, direct-injection requirements and installation costs.
