iABED Industries

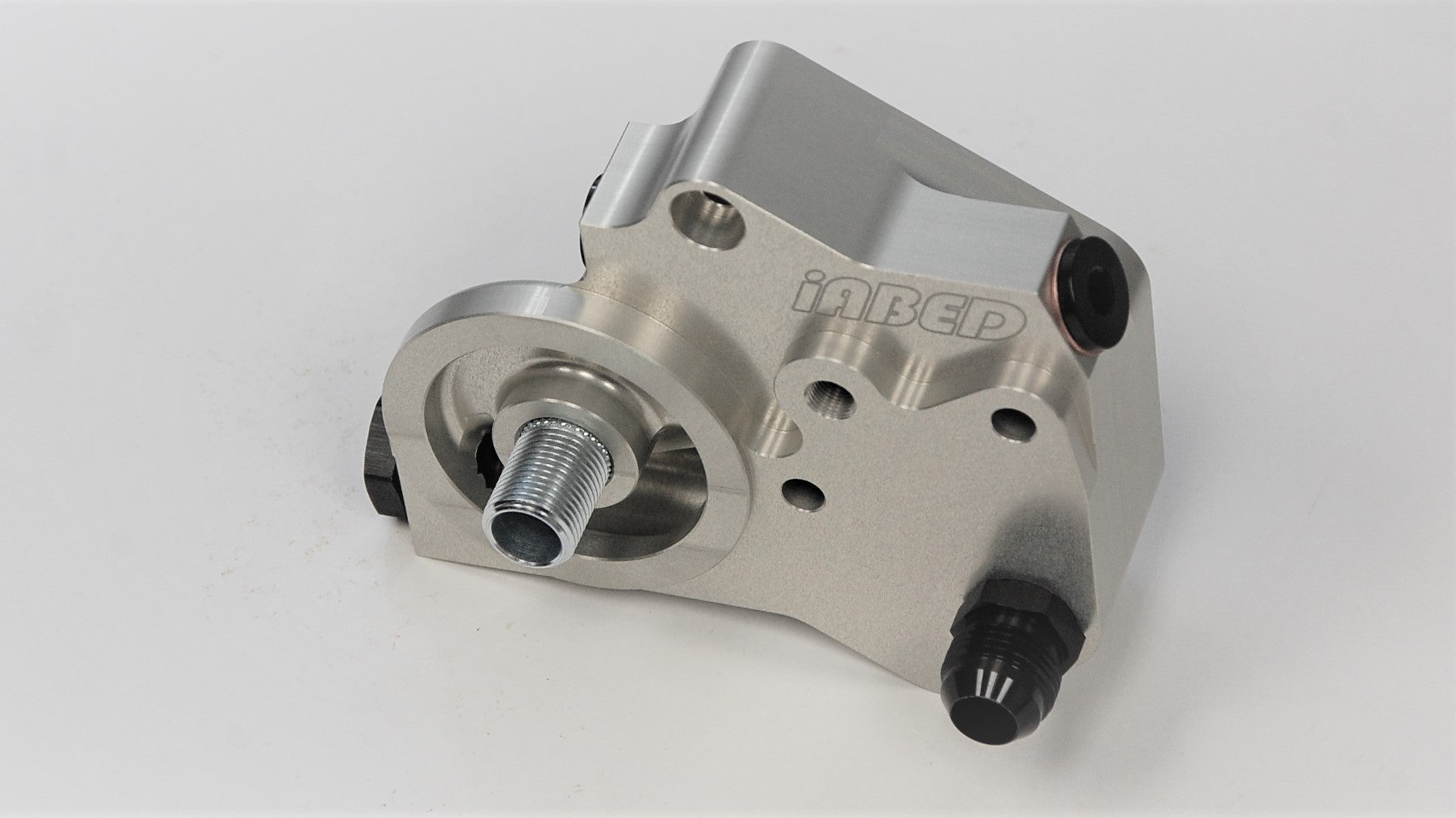

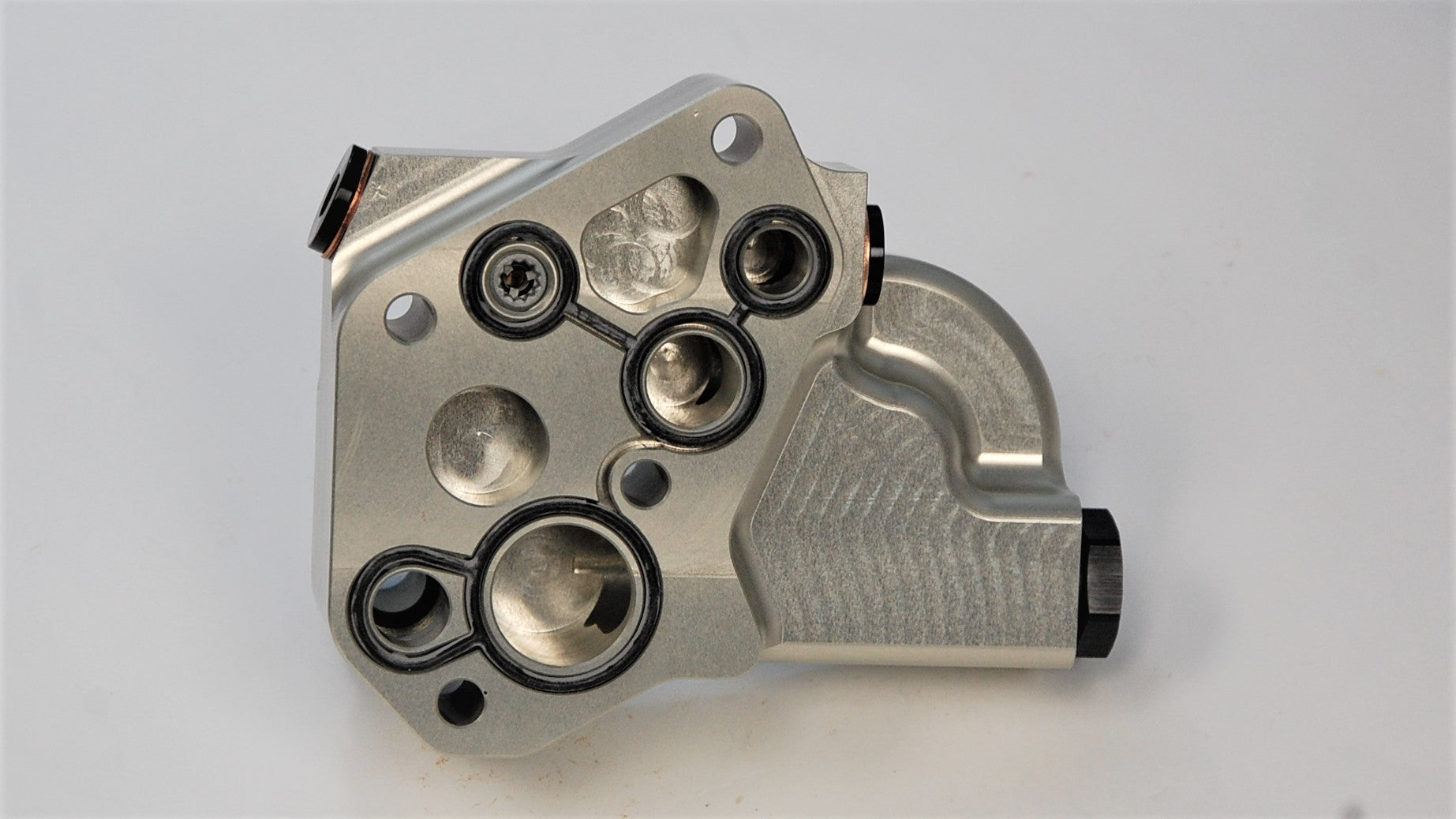

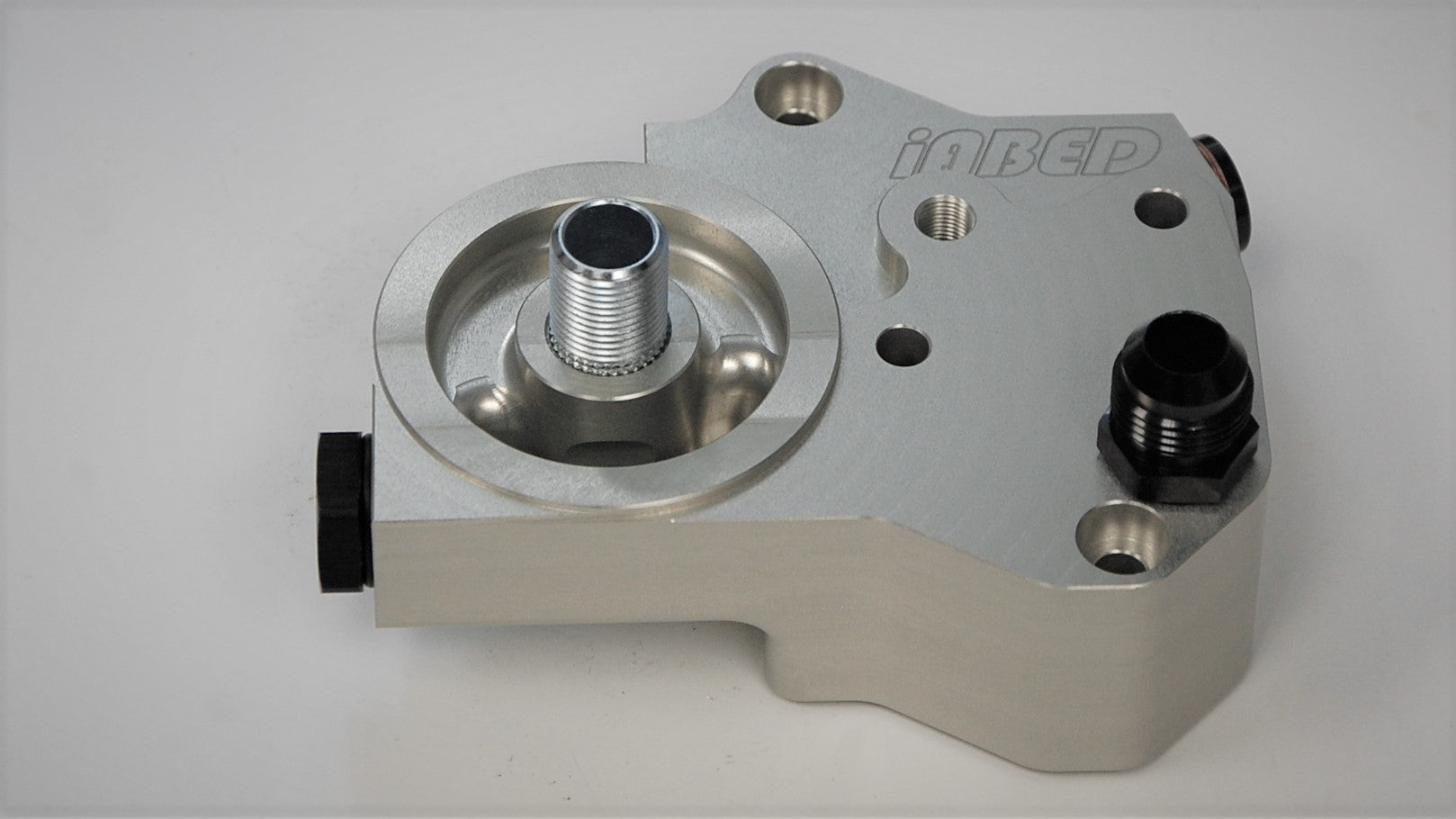

07K - 2.5 Longitudinal Oil Filter Housing (Engine Swap Housing)
07K - 2.5 Longitudinal Oil Filter Housing (Engine Swap Housing)
Regular price
$828.00 USD
Regular price
Sale price
$828.00 USD
Quantity
Couldn't load pickup availability
*If you are looking for our new housing with the built-in thermostat, please see 07K 2.5 20V LONGITUDINAL Oil Filter housing W/ THERMOSTAT.
---------------------------------------------------
Whether swapping an 07K into a longitudinal application (Porsche/Audi) or simply cleaning up your transverse project, this oil filter housing is compact enough for your project. Features dedicated coolant and oil channel ports for turbocharger oil and coolant supply, as well as crankcase ventilation. Housing has provision for the OEM check valve and full support for an engine mount bracket.
Key features include:
- Machined from T6061 aluminum for superior durability and weight savings.
- Provisions for turbocharger oil and coolant lines.
- Supports both naturally aspirated and turbocharged applications.
- OEM-style check valve integration for proper crankcase ventilation.
- Compact design allows for engine mount bracket compatibility.
Application guide: – All 07K 2.5 Naturally Aspirated and TFSI Engine.
| BUILD OF MATERIALS | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QUANTITY |
| - | T6061 Machined Housing | 1 |
| 07K115441 | Oil Filter Housing Gasket | 1 |
| 077103175B | OEM Check Valve | 1 |
| - | M14 x 1.5 broached plug | 1 |
| - | M14 copper washer | 1 |
| - | M16 x 1.5 broached plug (as standard) | 1 |
| - | M16 copper washer | 1 |
| - | M10 copper washer | 1 |
| - | AN-8 ORB to AN-10 Flare | 1 |
| - | AN-10 Plug | 1 |
| - | M8 x 1.25 x 50mm stainless steel socket cap bolt | 1 |
| - | M8 x 1.25 x 55mm stainless steel socket cap bolt | 1 |
| - | M8 x 1.25 x 65mm zinc plated steel socket cap bolt | 2 |
| - | M8 zinc washer | 2 |
| TOTAL | 16 | |
Please Note:
- Please specify your choice of fitting.
