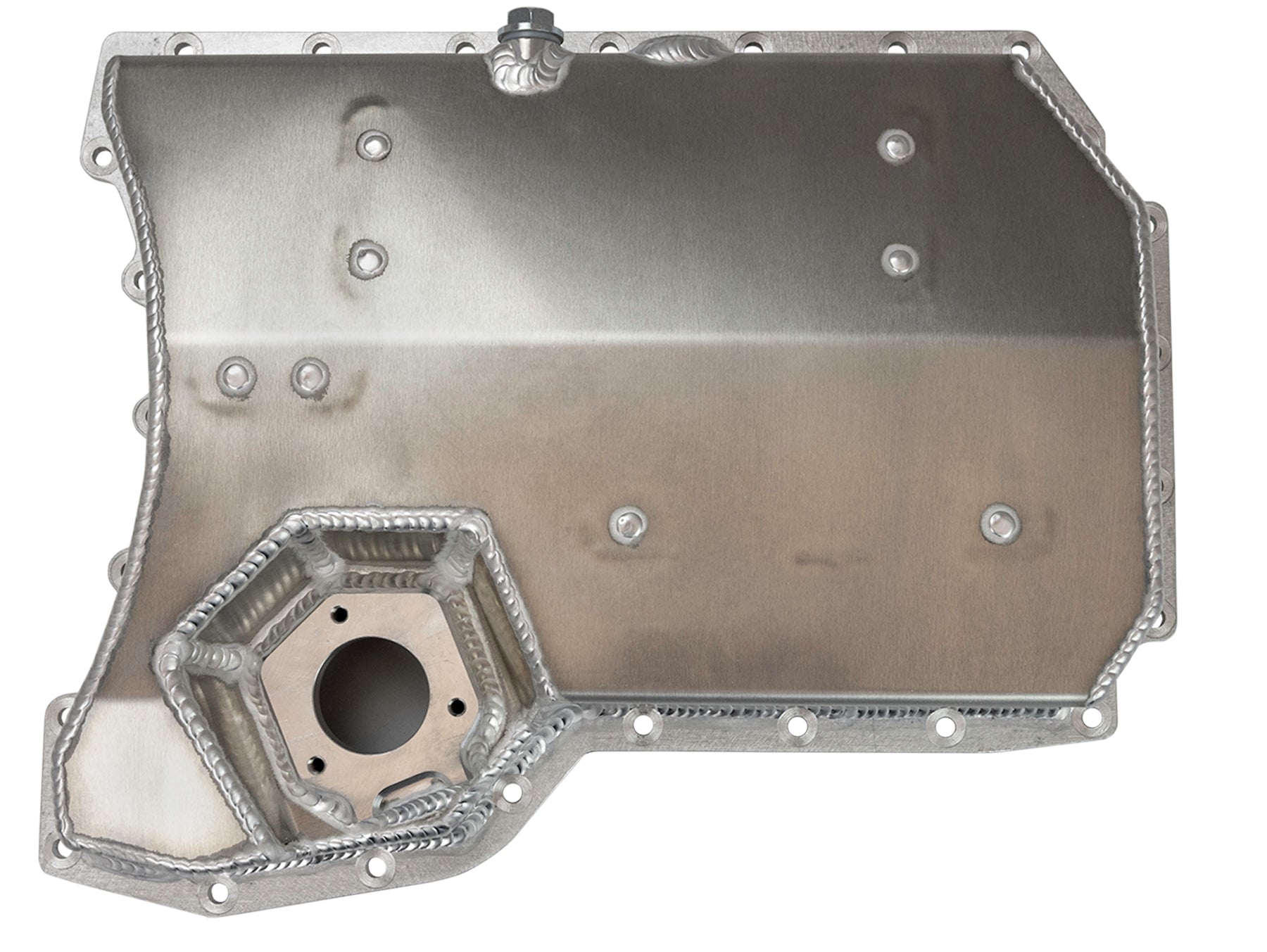

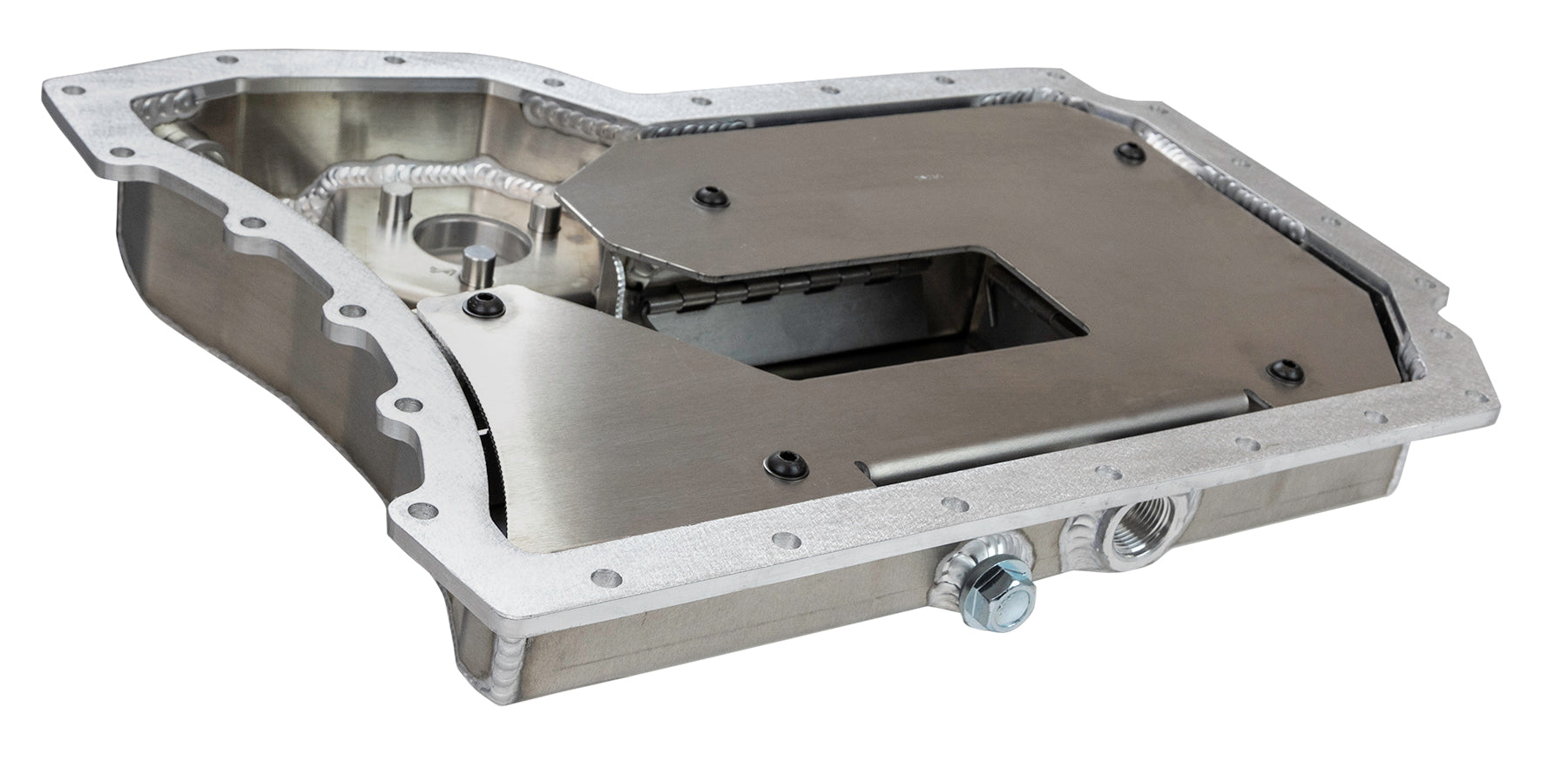

2.5 TFSI DAZA/DNWA Baffled Oil Pan

The only true baffled & trap door designed oil pan for your 2.5 TFSI equipped vehicle. Track tested and street proven to be the last stop oil pan needed for your build.

Developed in Partnership with Moroso Performance further solidifying our 20 year relationship and commitment to working with the best and bringing the best to market.

Key Features Include:

• Full aluminum construction.
• T6061 CNC Machined pan rail and oil level sensor provision plate.
• Sheet aluminum construction on outer body for longevity and resistance to corrosion.

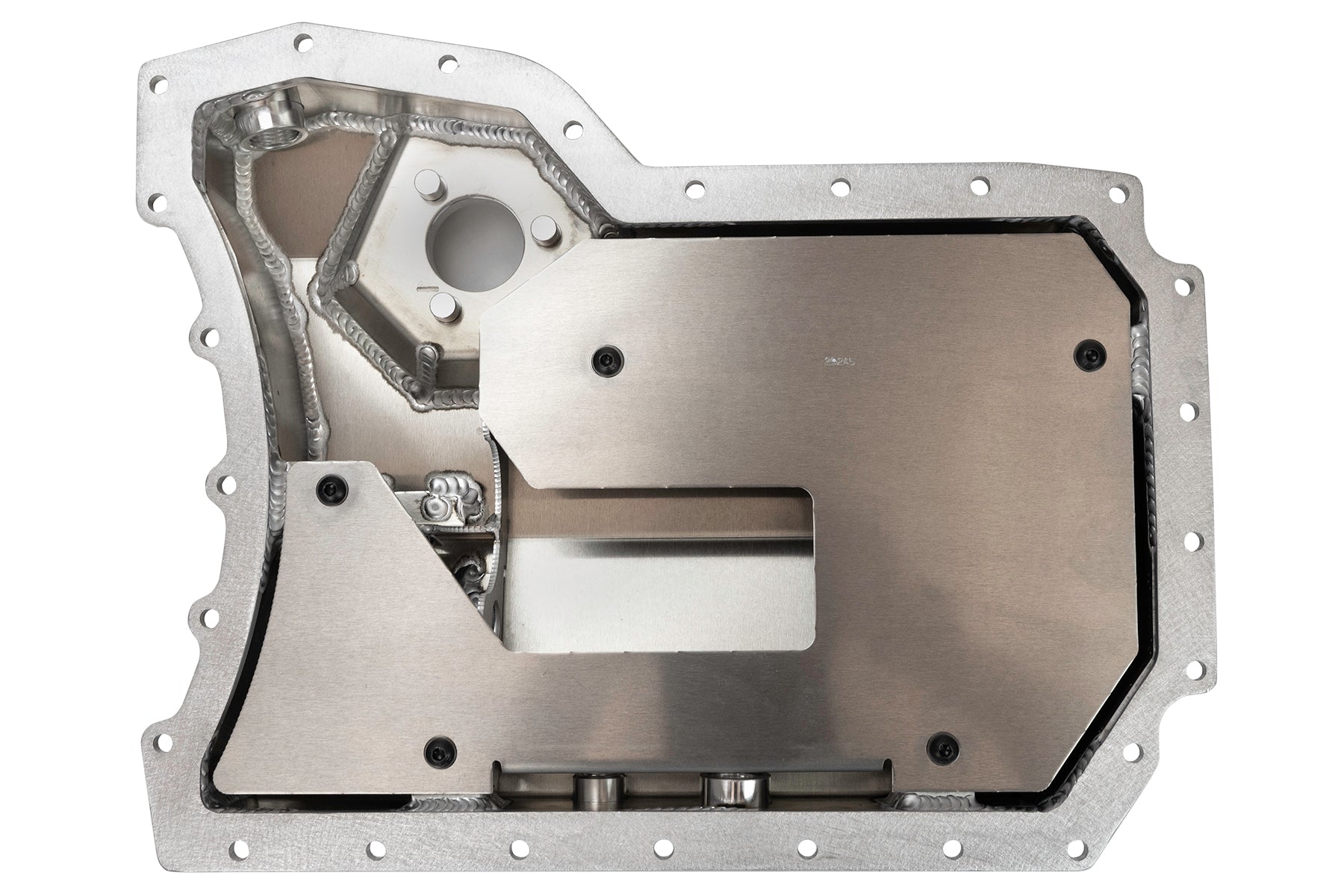

• Complete baffle system that prevents oil from sliding up the walls of the crankcase through hard cornering.
• Newly constructed stainless steel oil pump pickup tube (not shown) with larger suction basin.
• Trap door basket design that maintains oil around the Moroso pickup tube at all times.
• 1.3L increased oil capacity without raising the minimum height of the oil level.
• Provision for OEM oil level sensor.
• ¾-16” magnetic drain plug as standard.

Please Note:

• This product is developed in partnership with Moroso Performance, further solidifying our 20 year relationship and commitment to quality.
