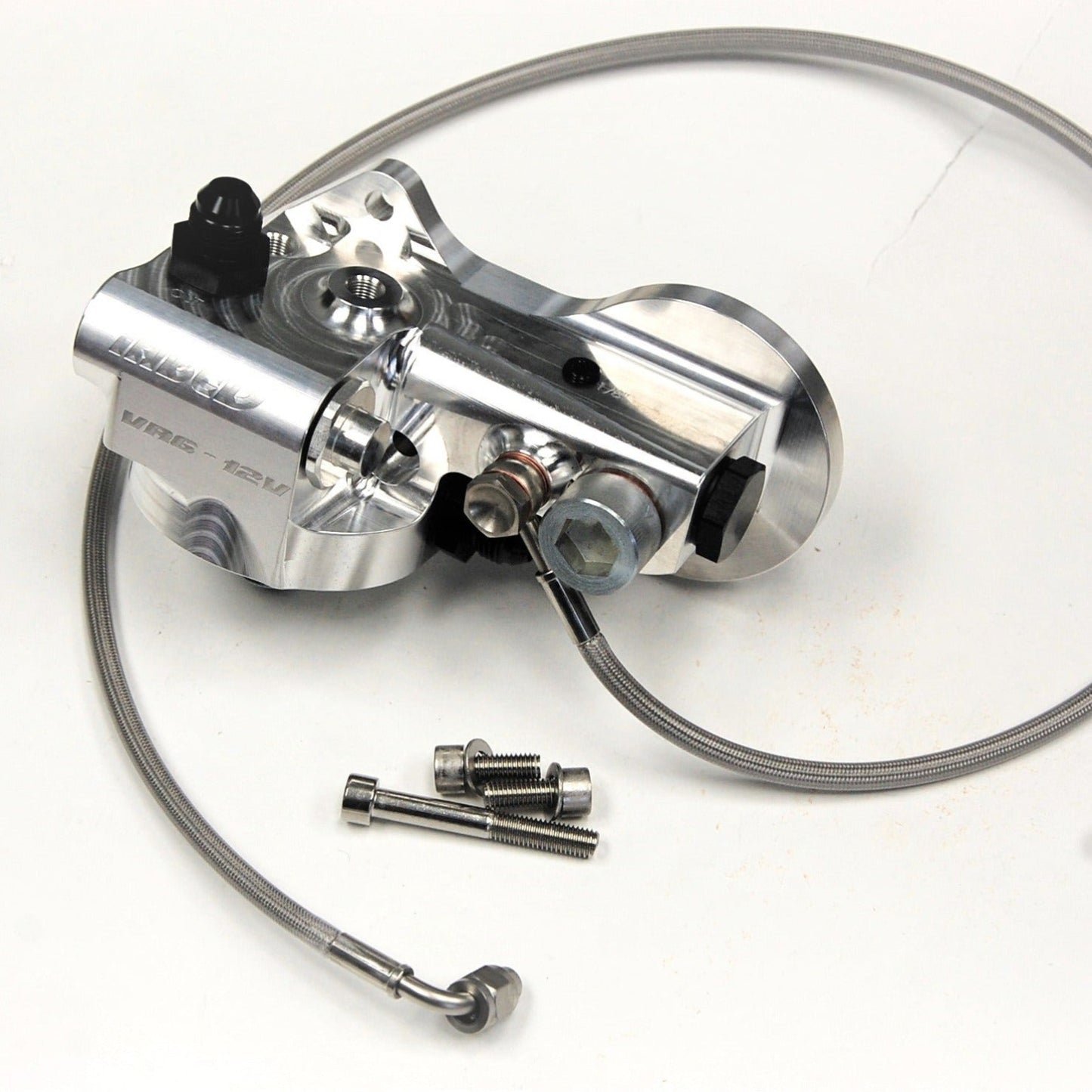

2.8 12V VR6 OIL FILTER HOUSING - WITH BUILT IN THERMOSTAT

The ultimate solution for an oil filter housing for your 12V VR6 . This combines both the iABED 462-635-0028 & 462-635-0029 into 1 single unit while eliminating the need for an add on sandwich plate.

Fits all 2.8 | 2.9 12V VR6 from 1991 till 2001.

Key features include :

• ¾-16” threaded nipple for any screw on oil filter (Most common being either 06A 1.8T or similar)
• MOCAL 90°C Thermostat incorporated into the housing allowing the installer to not need an additional thermostatic sandwich plate. (essentially an upgrade over 462-635-0028).
• M12 x 1.5 port for turbocharger oil feed.
• 1/8” NPT port for aftermarket Oil Pressure / Temperature sender
• 3 x M10 x 1.0 ports for OEM oil senders
• Compact lightweight design with material removal in non-critical areas to save on weight.
• Elimination of OEM heat exchanger to create all in one solution.

Build of Materials:

• (1) iABED CNC Machined Housing
• (1) MOCAL Thermostat
• (1) 1/8” NPT broached plug
• (1) ¾-16” Threaded fitting
• (2) AN-10 Male ORB to Union fitting
• (1) AN-10 ORB plug
• (1) ¾-16” 70mm UHL Zinc plated Bolt
• (1) CWM20 copper crush washer
• (1) M12 x 1.5 broached plug
• (1) CWM12 copper crush washer
• (2) 17 x 3mm N70 O-ring
• (1) 24 x 3mm N70 O-ring
• (1) 65 x 3mm N70 O-ring
• (1) M8 x 60mm stainless steel socket cap screw
• (2) M8 x 25mm stainless steel socket cap screw
• (2) M8 Stainless steel washer

N.B.
This product requires purchasing an additional air cooled oil cooler (Setrab , Mocal , etc). It can be used in conjunction with the OEM heat exchanger if requested to switch the ¾-16” threaded fitting for an OEM unit.
