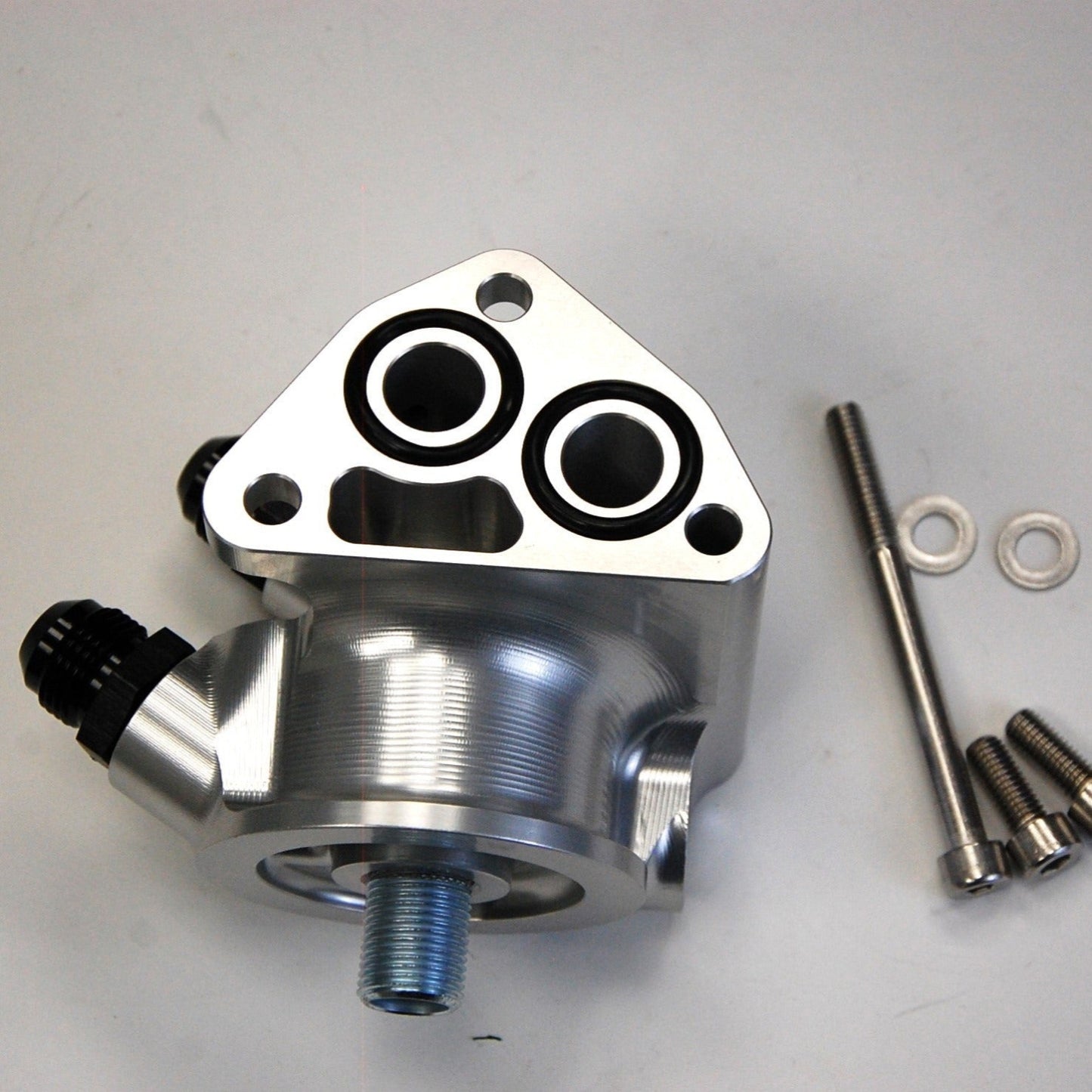

2.8 | 3.2 | 3.6 24V VR6 OIL FILTER HOUSING W/ BUILT IN THERMOSTAT
2.8 | 3.2 | 3.6 24V VR6 OIL FILTER HOUSING W/ BUILT IN THERMOSTAT
Regular price
$477.00 USD
Regular price
Sale price
$477.00 USD
Unit price
per
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The ultimate solution for an oil filter housing for your 24V VR6 . Fits all 24V VR6 from 2002 till present.
Key features include :
• ¾-16” threaded nipple for any screw on oil filter (Most common being either 06A 1.8T or similar)
• MOCAL 90°C Thermostat incorporated into the housing allowing the installer to not need an additional thermostatic sandwich plate. (essentially an upgrade over 462-635-0024).
• M12 x 1.5 port for turbocharger oil feed.
• 1/8” NPT port for aftermarket Oil Pressure / Temperature sender
• 2 M10 x 1.0 ports for OEM oil senders
• Compact lightweight design with material removal in non-critical areas to save on weight.
Build of Materials:
• (1) CNC Machined Housing
• (1) MOCAL Thermostat
• (1) 1/8” NPT broached plug
• (1) ¾-16” Threaded fitting
• (2) AN-10 Male ORB to Union fitting
• (1) M12 x 1.5 broached plug
• (1) CWM12 copper crush washer
• (2) 24 x 3mm N70 o-ring
• (1) M8 x 90mm stainless steel socket cap screw
• (2) M8 x 20mm stainless steel socket cap screw
• (2) M8 Stainless steel washer
N.B.
This product requires purchasing an additional air cooled oil cooler (Setrab , Mocal , etc). It can be used in conjunction with the OEM heat exchanger if requested to switch the ¾-16” threaded fitting for an OEM unit.
