2.8 | 3.2 | 3.6 VR6 Longitudinal Swap Bracket Assembly – Intake manifold side
2.8 | 3.2 | 3.6 VR6 Longitudinal Swap Bracket Assembly – Intake manifold side
Regular price
$589.99 USD
Regular price
Sale price
$589.99 USD
Quantity
Couldn't load pickup availability
Do away with trying to make Phaeton parts work and clumsy oil changes.

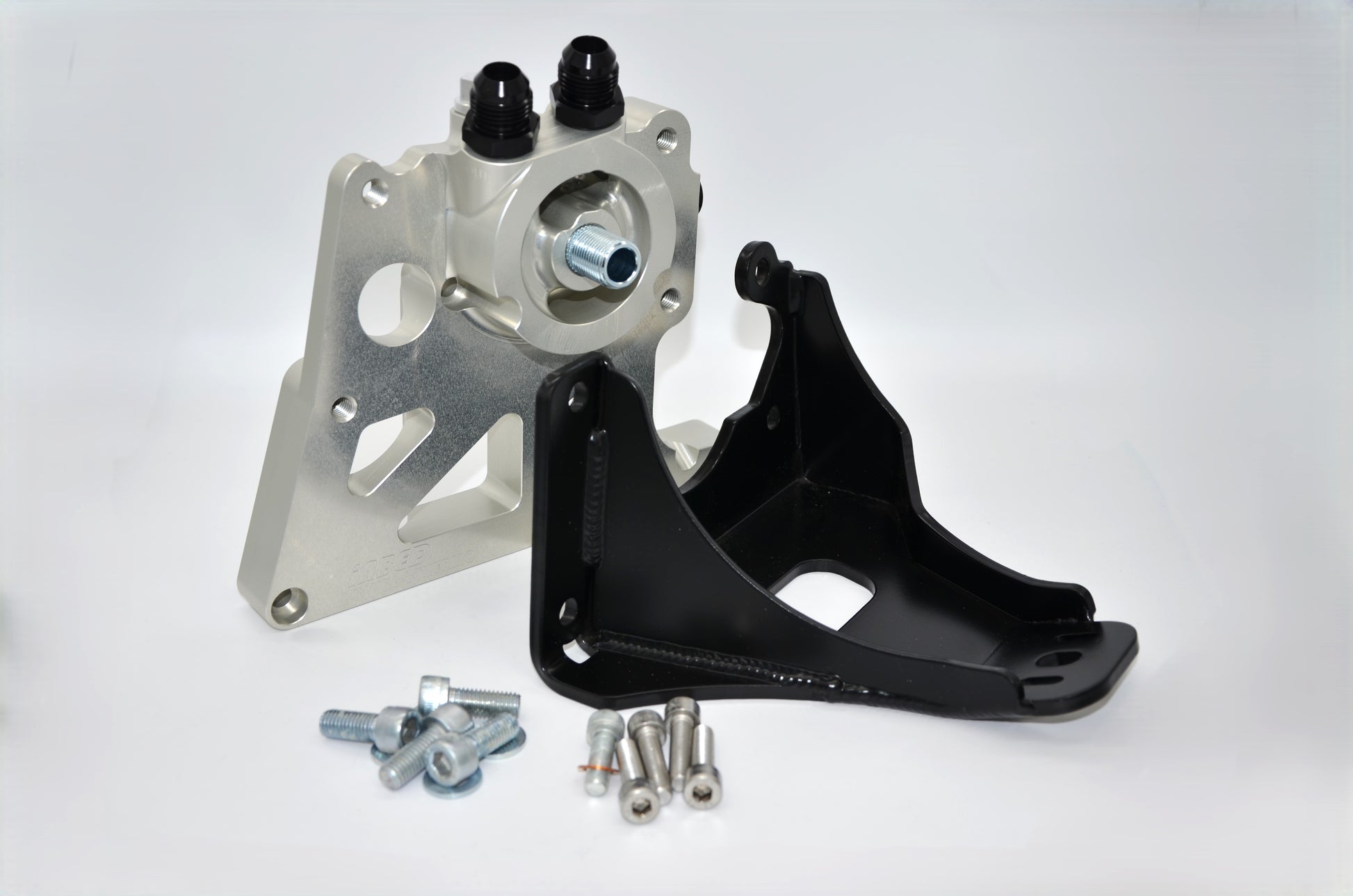

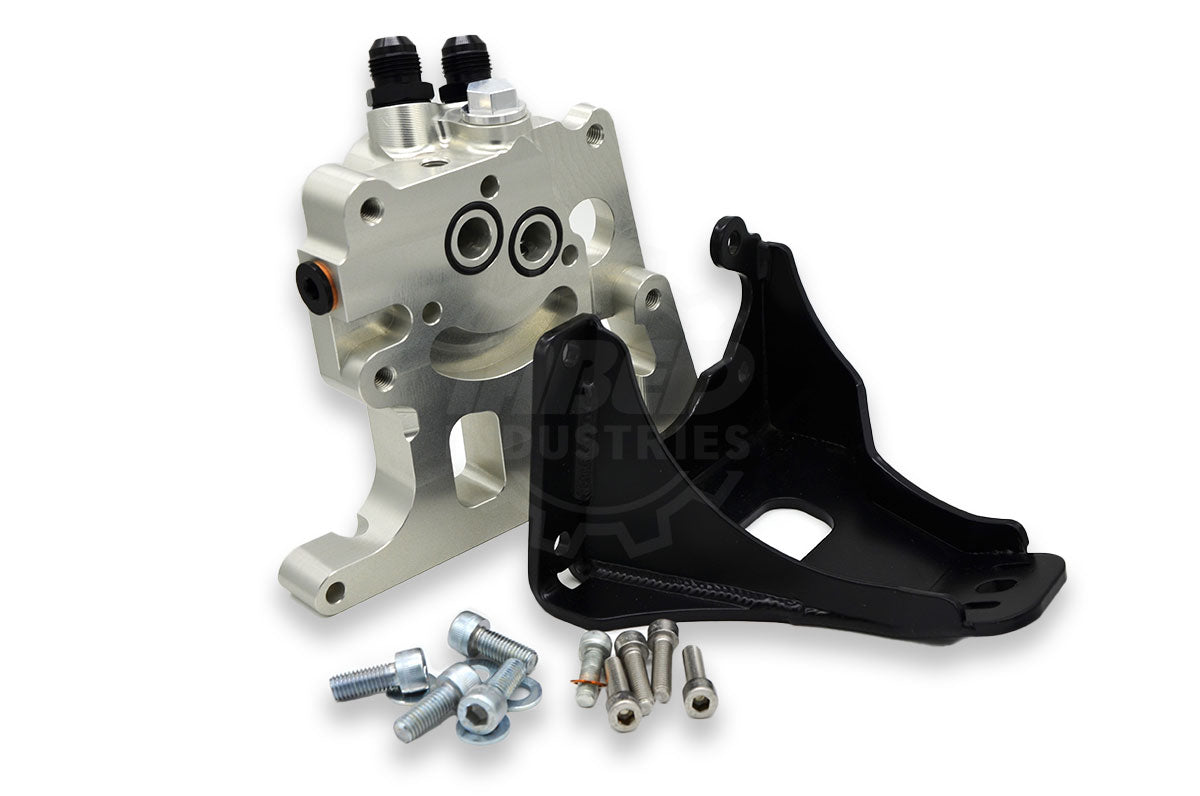

Our two-piece assembly comprises both a steel bracket [462-637-002] and a billet oil feed plate with a built-in thermostat [462-635-0045].
Works with B5 through B7 chassis.
About the bracket:
- CNC mandrel-bent steel with gussets for reinforcement.
- Tested on over 800+ hp VR6 swaps.

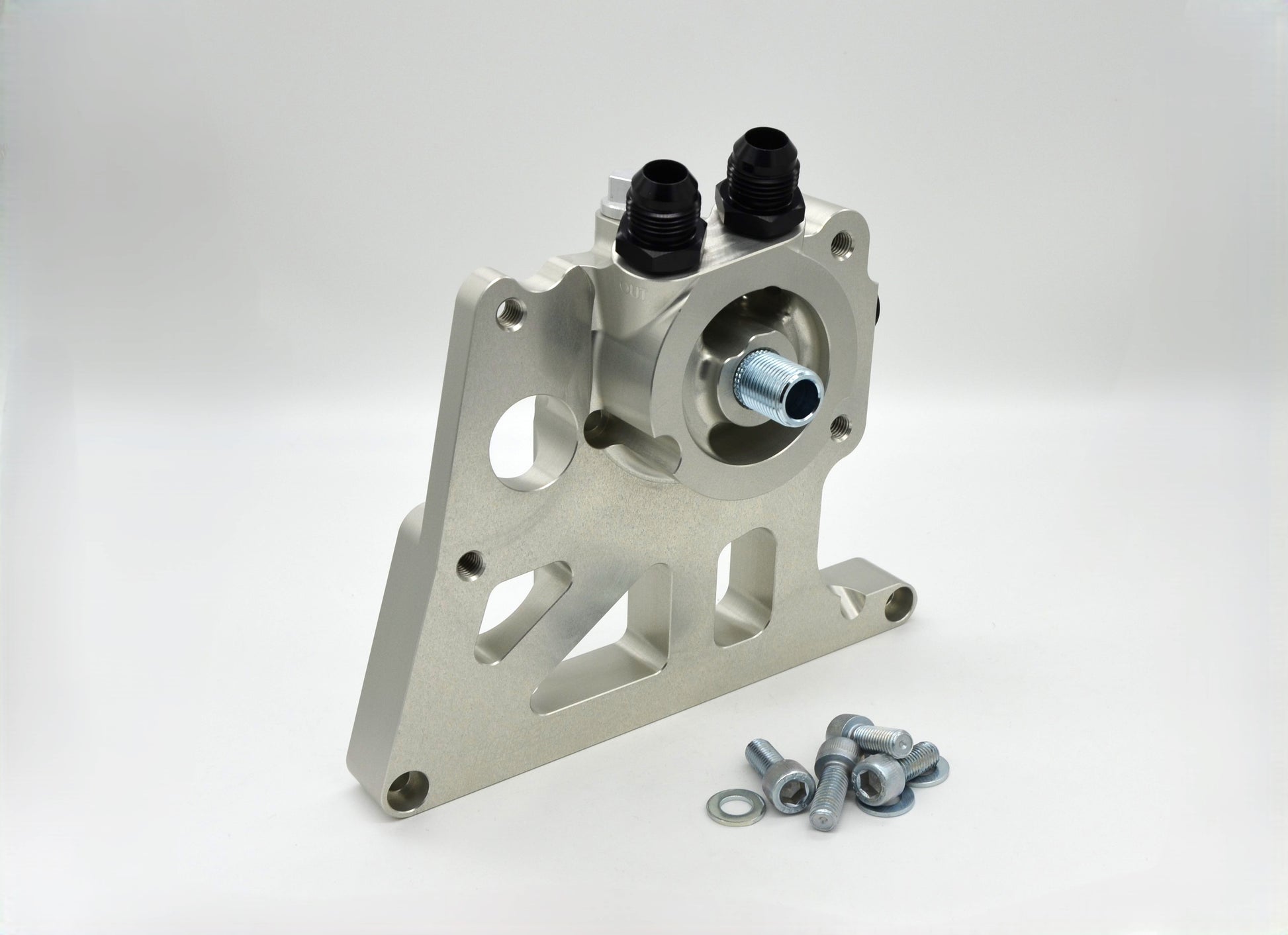

About the feed plate:
- Final revision/iteration of a product in circulation for years.
- Now features a built-in Mocal thermostat for running an external oil cooler without the need for a sandwich plate.
| BUILD OF MATERIALS | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QUANTITY |
| 462-635-0045 | iABED 24VR6L-Thermostat Feed Plate | 1 |
| Z 0TSP1SK | Mocal Thermostat | 1 |
| TN3/4-16 | 3/4-16" Oil Filter Fitting | 1 |
| 920-10 | 10AN Flare x 10AN ORB | 2 |
| 814-M16 | M16 x 1.5 Plug Round | 1 |
| CWM16C | 16MM Copper Washer | 1 |
| AM12AN4 | M12 x 1.5 to 4-AN Union | 1 |
| CWM12C | 12MM Copper Washer | 1 |
| O-RING - 24 x 3MM | 24 x 3mm N70 O-Ring | 1 |
| M8 x 25MM 12.9 BOLT | M8 x 25mm Grade 12.9 Bolt | 1 |
| CWM8C | 8MM Copper Washer | 1 |
| M8 x 30MM 12.9 BOLT | M8 x 30mm Grade 12.9 Bolt | 4 |
| 462-637-001 | VR6 Longitudinal Mount Bracket - Intake Side | 1 |
| M10 x 20MM 12.9 BOLT | M10 x 20mm Grade 12.9 Bolt | 1 |
| M10 x 25MM 12.9 BOLT | M10 x 25mm Grade 12.9 Bolt | 3 |
| - | M10 Zinc-Plated Washer | 4 |
| TOTAL | 25 | |
