EA888 Baffled Aluminum Oil Pan
EA888 Baffled Aluminum Oil Pan
Regular price
$954.95 USD
Regular price
Sale price
$954.95 USD
Quantity
Couldn't load pickup availability

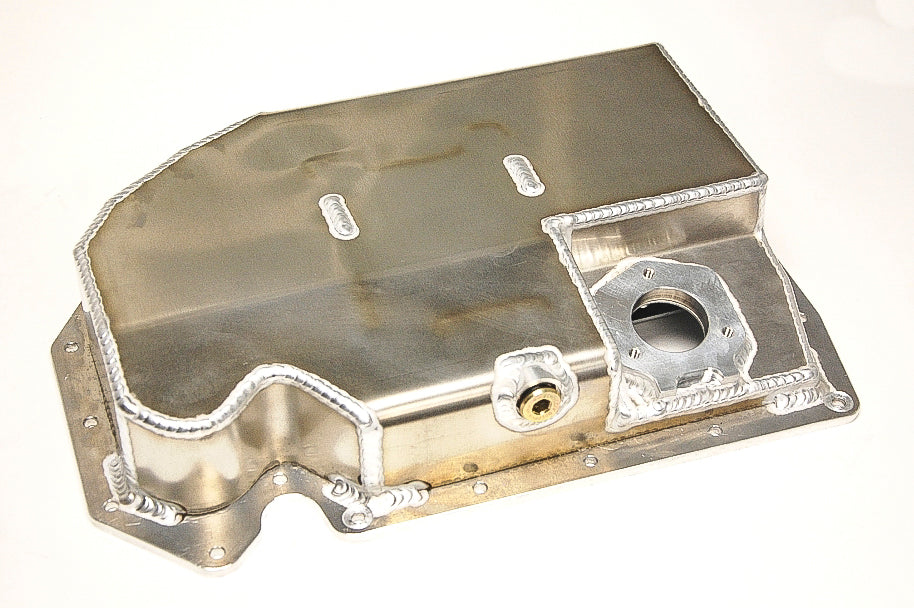

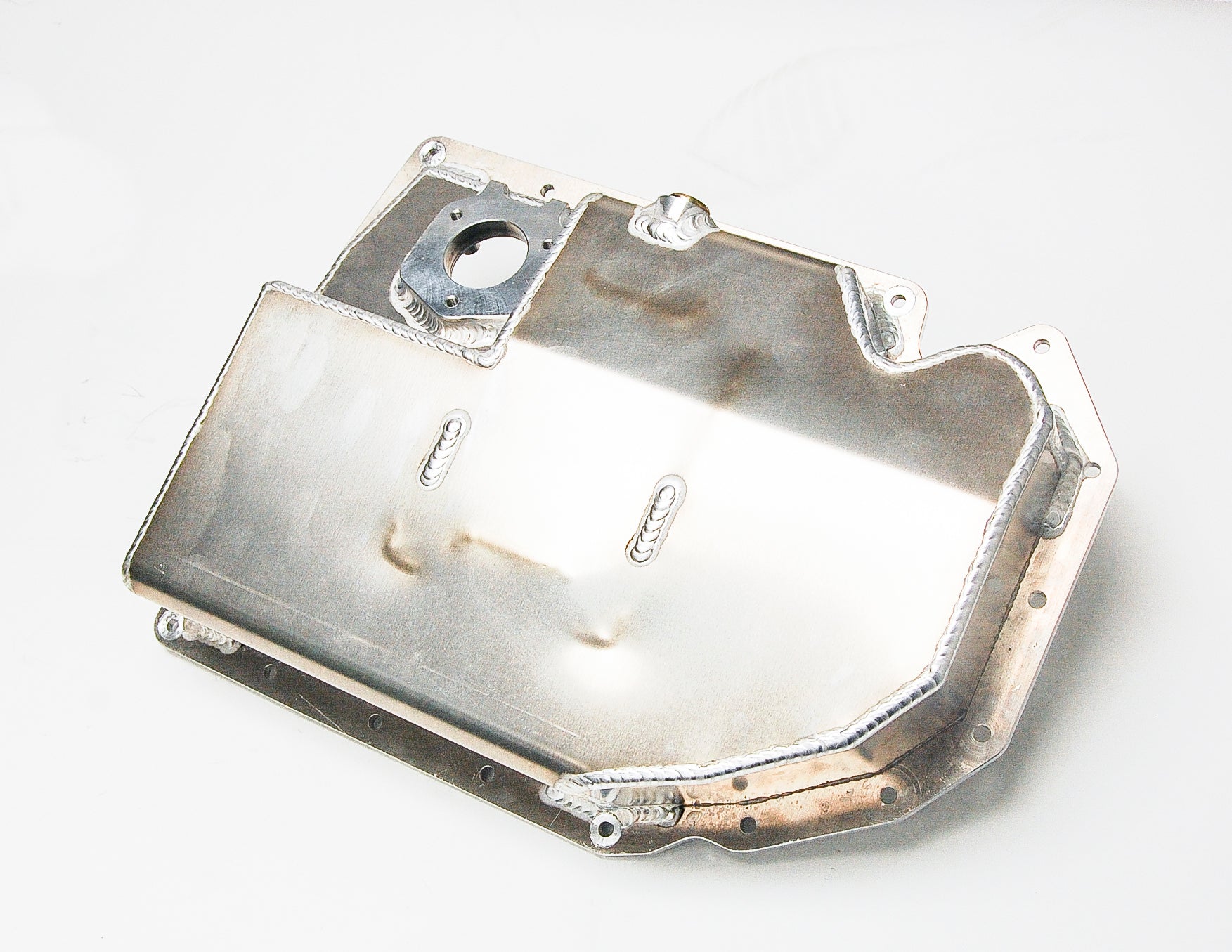

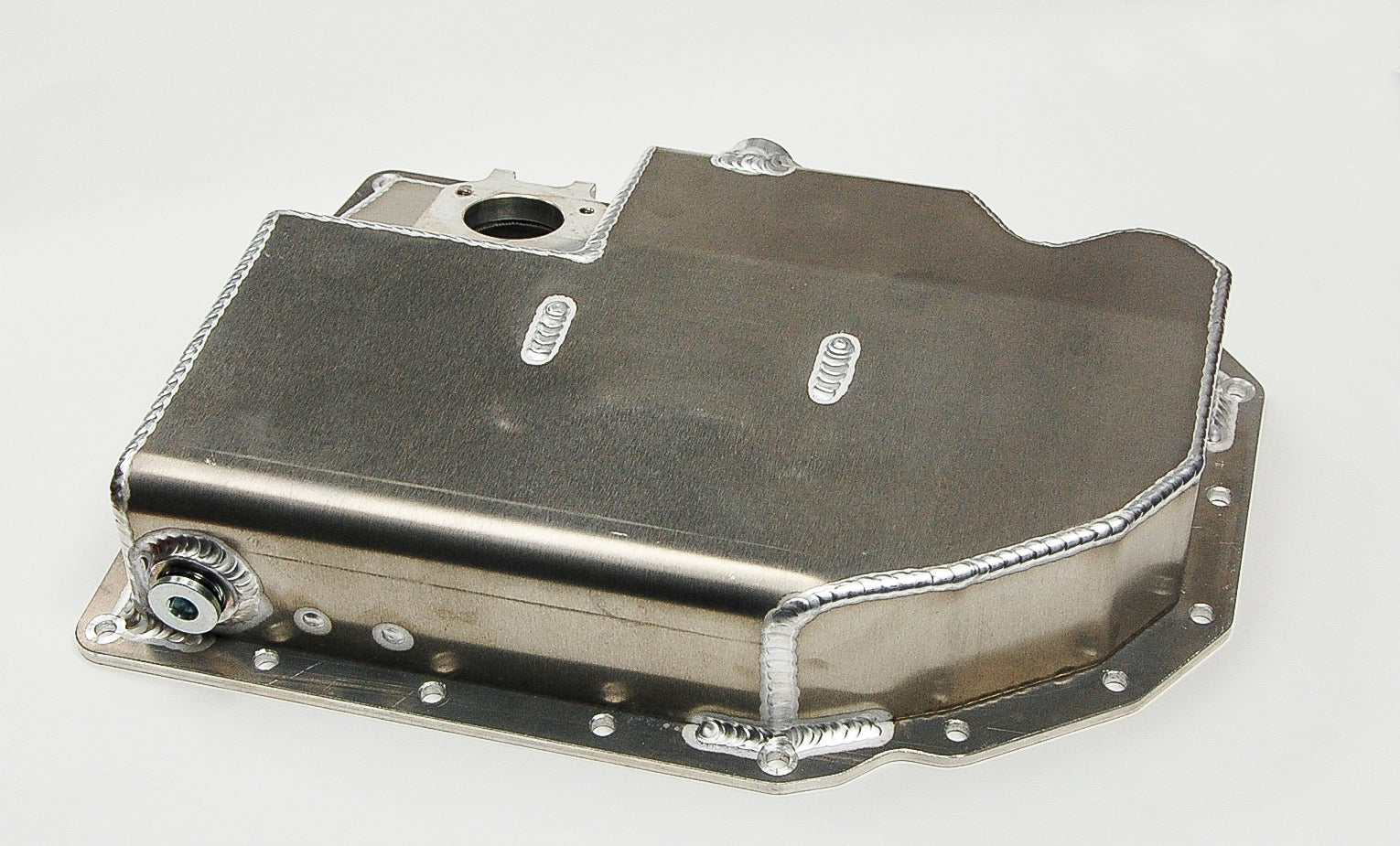

The ultimate baffled oil pan solution for your high-performance engine.
Key features include:
- Full aluminum construction.
- T6061 CNC machined pan rail and oil level sensor provision plate.
- Sheet aluminum construction for longevity and resistance to corrosion.

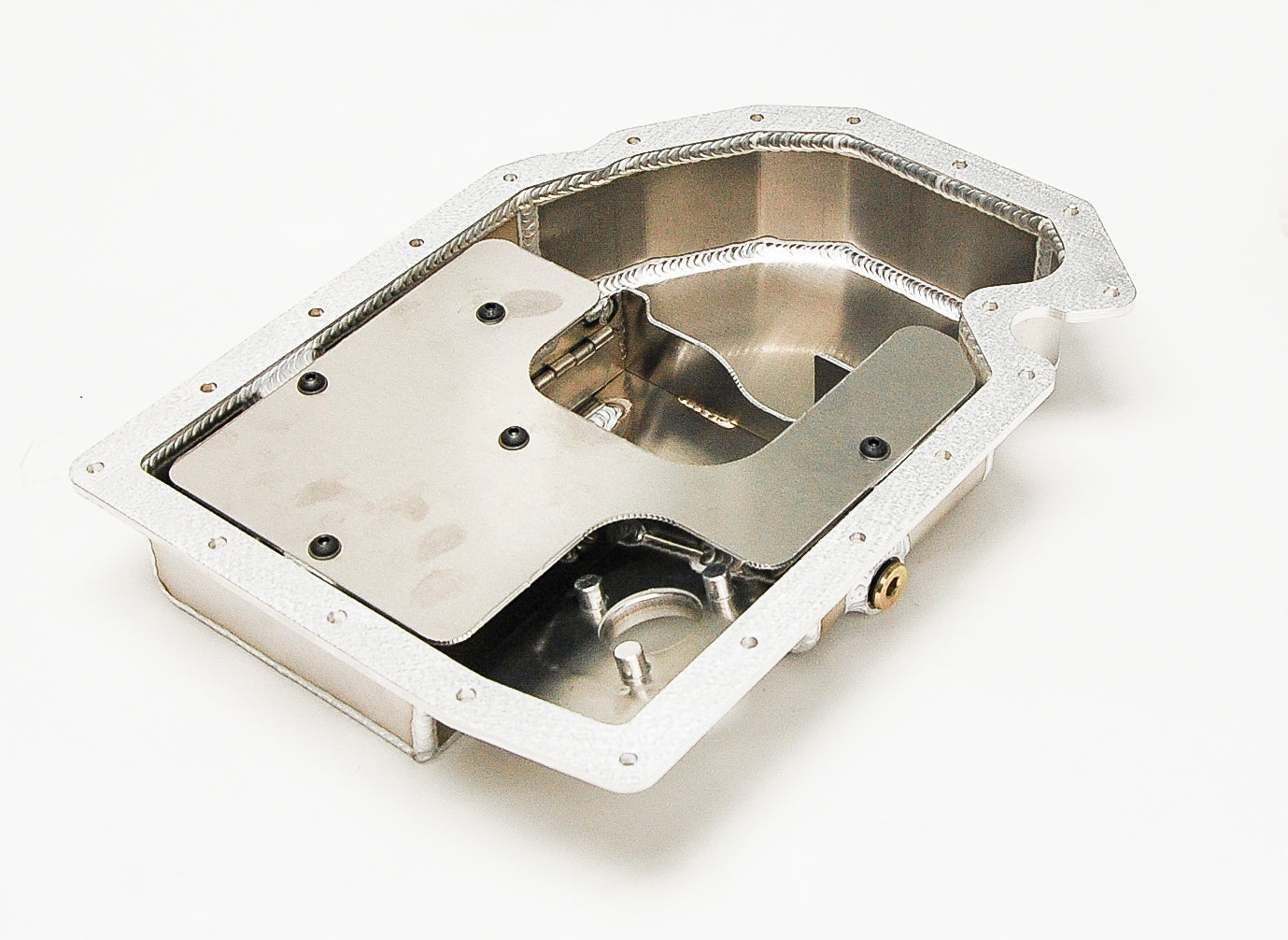

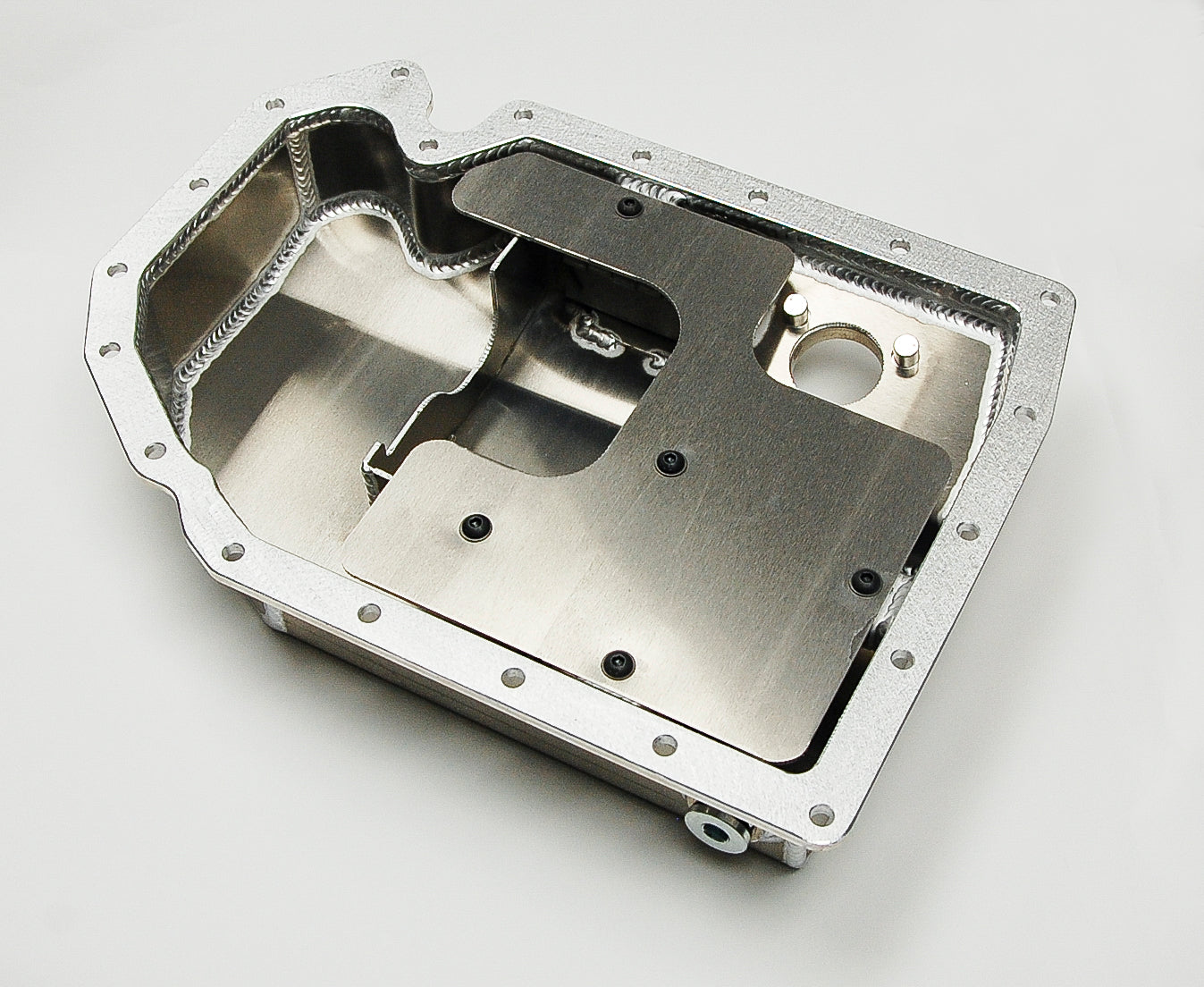

- Complete baffle system preventing oil from sliding up the crankcase walls during hard cornering.
- Trap door basket design maintaining oil around the OE pickup tube for optimal performance.
- 0.3L increased oil capacity without raising the minimum oil level height.
- Provision for OEM oil level sensor.

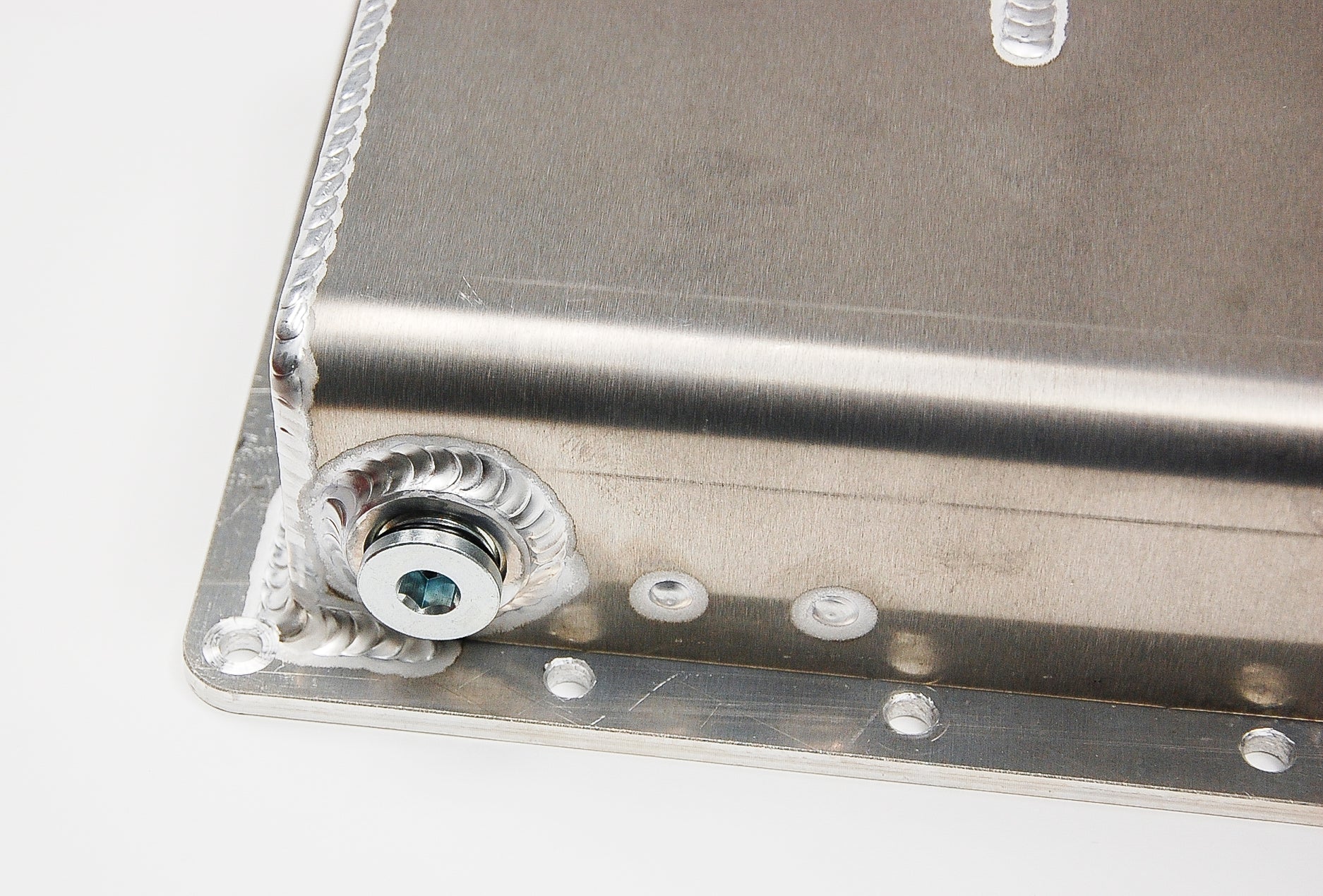

- M14 x 1.5 magnetic drain plug as standard.
N.B.In the event that you need to remove the baffled plate for cleaning , the hardware used are 1/4-20" .
Apply blue thread locking compound (loctite) and torque to 70 to 80 inch lbs of torque.
Apply blue thread locking compound (loctite) and torque to 70 to 80 inch lbs of torque.
