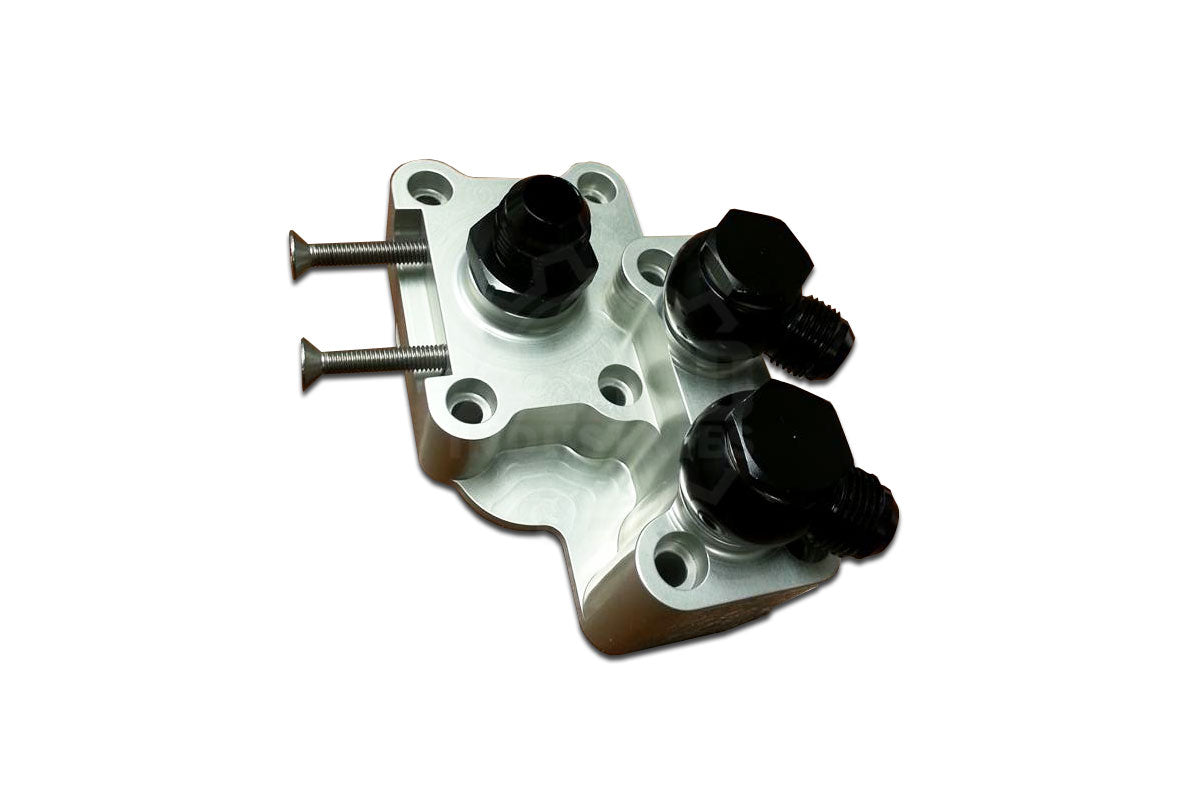

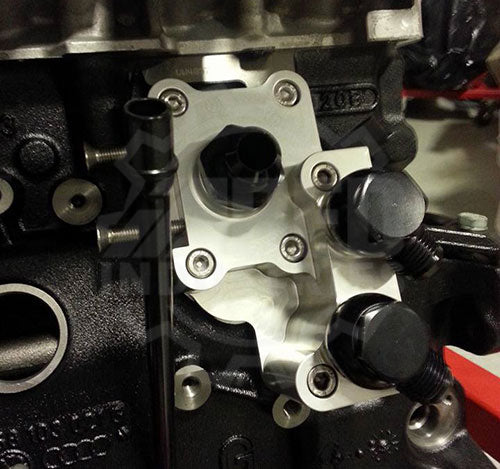

[G60] - VW827 Crankcase Breather box w/remote oil filter feed plate

[G60] - VW827 Crankcase Breather box w/remote oil filter feed plate

$309.00 USD
$309.00 USD
Sale Sold out

Ideal solution for those looking for a better crankcase breather box and remote oil filter feed block all in one.

Applications include all watercooled early 20V (AEB/ADR/AJL), 16V’s and 8V engines.

Key features include:

  • Stainless steel back plate for breather with multi hole punch. Breather box contains steel wool.
  • AN-12 crankcase breather port.
  • (2) AN-10 connection for remote oil filter feed and return.
  • M12 x 1.5 female thread for either turbocharger or supercharger filtered oil feed.
  • OEM Volkswagen Oil check valve to maintain oil in cylinder head once oil pump is shut off.
  • T6061 billet aluminum construction.
  • (2) M8 x 1.25 threaded holes on the side for G60 supercharger rear bracket provision.
BUILD OF MATERIALS
PART NUMBER DESCRIPTION QUANTITY
- Breather box without oil filter feed. 1
- M8 x 1.25 x 50mm stainless steel socket cap screw. 4
- M8 x 1.25 x 65mm stainless steel socket cap screw. 3
- OEM Check valve. 1
- 12-AN ORB Male union fitting (Black only). 1
- 10-AN ORB Male union fitting (Black only). 2
- M12 x 1.5 to 4-AN male union (for turbocharger or supercharger oil feed). 1
- M8 x 1.25 x 40mm countersunk socket cap screw (for G60 or similar rear support bracket). 2
TOTAL 15

Please Note:

  • If you are looking for a version of this for Naturally Aspirated 16V’s or AEB 1.8T motors, you will want to purchase 462-103-772-B
  • You will need to specify if you have a PL or 9A block as the upper oil filter housing bolt is off by 8mm.
  • If you attach a photograph to this order (in the Options section above) or send us a photograph after ordering, we will be able to identify which version you have.
  • Remote oil filter options are available separately.
