PQ35 EA113 2.0 TFSI Oil Cooler Kit
PQ35 EA113 2.0 TFSI Oil Cooler Kit
Couldn't load pickup availability
The iABED Industries PQ35 Oil Cooler kit is designed to aid with the notorious oil cooling issues that plague the EA113 line of engines.
The OEM heat exchanger is inadequate in maintaining oil temperatures below 240°F (115°C). Tracking vehicles in extreme heat often experience oil temperatures rising above 275°F, causing drivers to back off to avoid permanent damage.
Our solution maintains oil temperature at 221°F (105°C) and can even go as low as 90°C if specified.
We proudly use and sell industry-leading components such as Mocal/Setrab for oil cooler cores, XRP for nylon braided lightweight hoses & fittings, and the finest Canadian T6061 for our machined components. For the EA113 engine, we use a 19-row oil cooler and a 115°C thermostat to maintain optimal oil temperature.
Application Guide: Suitable for all EA113 2.0 TFSI engines, including:
- Volkswagen MK5 GTI / GLI | B6 Passat | MK6 Golf R
- Audi 8P A3 / S3 / TT-S | Audi B7 A4
- Seat Leon Cupra R
- Skoda Octavia VRS

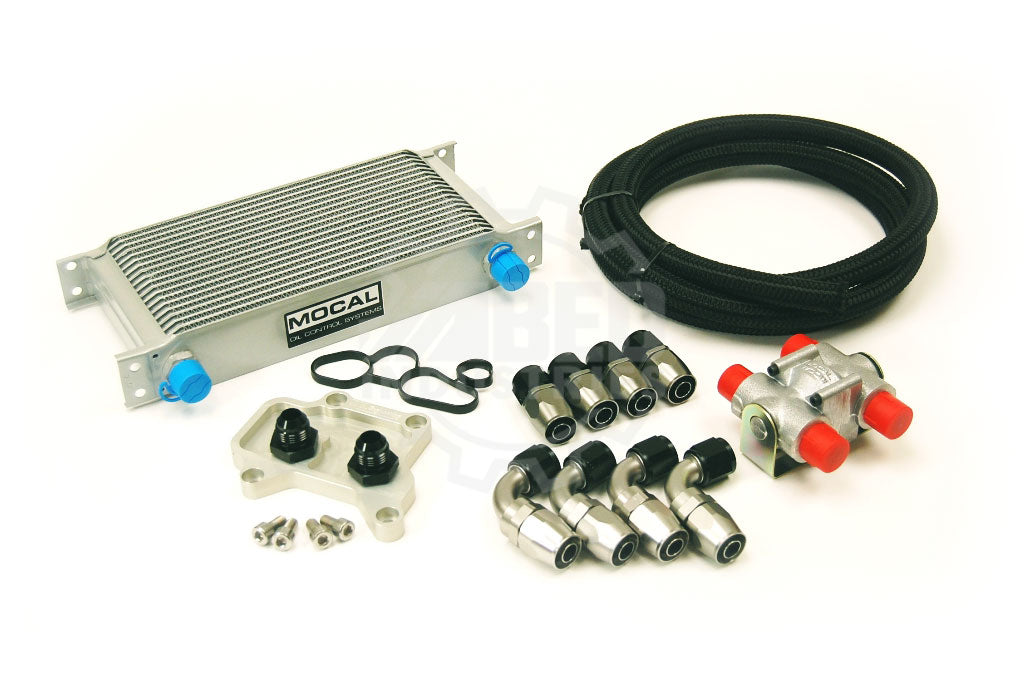

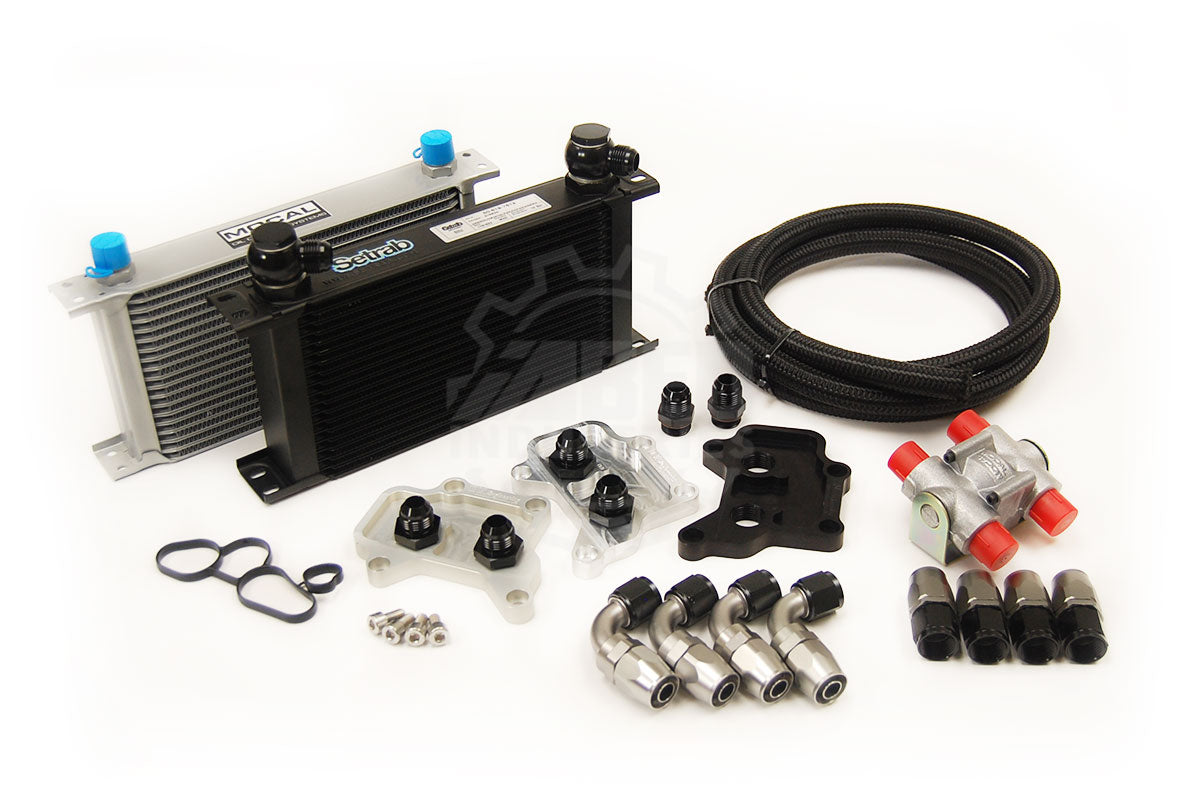

Kit Includes:
MK6 Golf R / 8P Audi S3 – EA113- 2.0 TFSI Timing Belt Motor Oil Cooler
| BUILD OF MATERIALS | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QUANTITY |
| 06F | iABED T6061 Billet Oil Filter Housing Adapter Plate | 1 |
| A19A10 | Mocal 19-Row Oil Cooler | 1 |
| A0T2-3 | Mocal Inline Thermostat | 1 |
| - | AN-10 O-ring Boss fittings | 2 |
| - | M8 x 1.25 x 16mm Stainless Steel socket cap screws | 4 |
| TS-10 | AN-10 Hose Ends | 4 |
| T90-10 | 90-Degree AN-10 Hose Fittings | 4 |
| - | AHL-10 XRP Nylon Braided Hose | 10 |
| TOTAL | 27 | |
Please Note:
- Please specify the anodization color and preferred brand for the oil cooler core. Standard finish is raw.
- This kit does not include mounting brackets, which must be fabricated by the installer.
