VW 6A|9A|PL|KR|ABF 16 VALVE - (1.8T) Camshaft Position Sensor Kit

Tired of your CIS? Looking to bring your project into the future to allow the use of Coil Packs?  Want to throw away your 80's retro style distributor? Look no further!

The iABED VW 16 valve camshaft position kit will allow the user the ability to run COP's without fancy adapters. Our all in one solution is a direct plug and play and will work on all 1987 – 1998 Volkswagen 16V cylinder heads . Mounted where the distributor once was allowing true camshaft position utilizing an OEM bosch camshaft position sensor.

The 4-Window trigger wheel is a 1:1 in reverse of the 06A AWP 1.8T OEM trigger wheel which will allow the end user to use a 1.8T 20V Harness & ECU on the 16V build (assuming a 60-2 trigger wheel is used on crankshaft) . Perfect for ABA 16V hybrid or ABF long block builds.

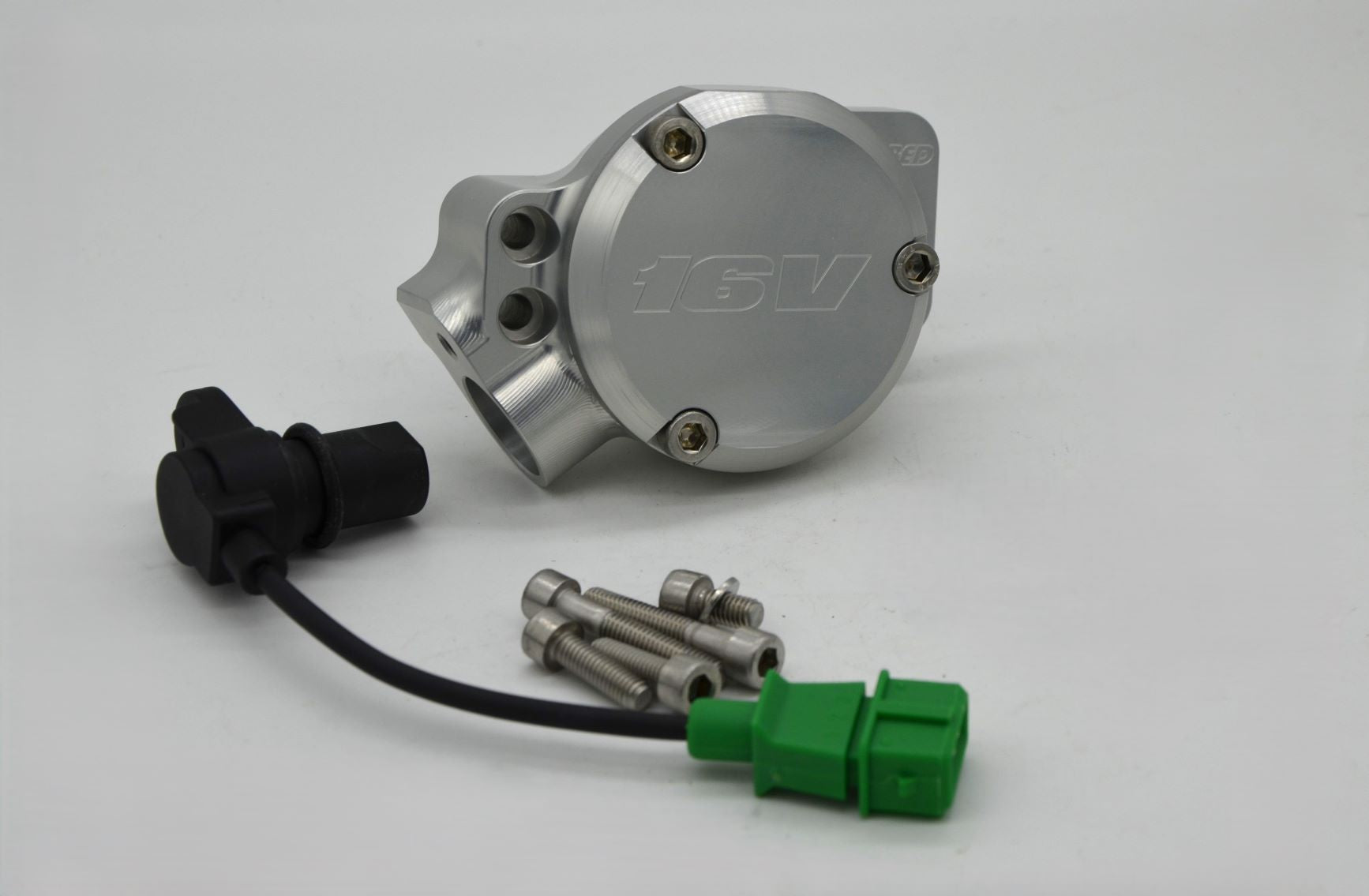

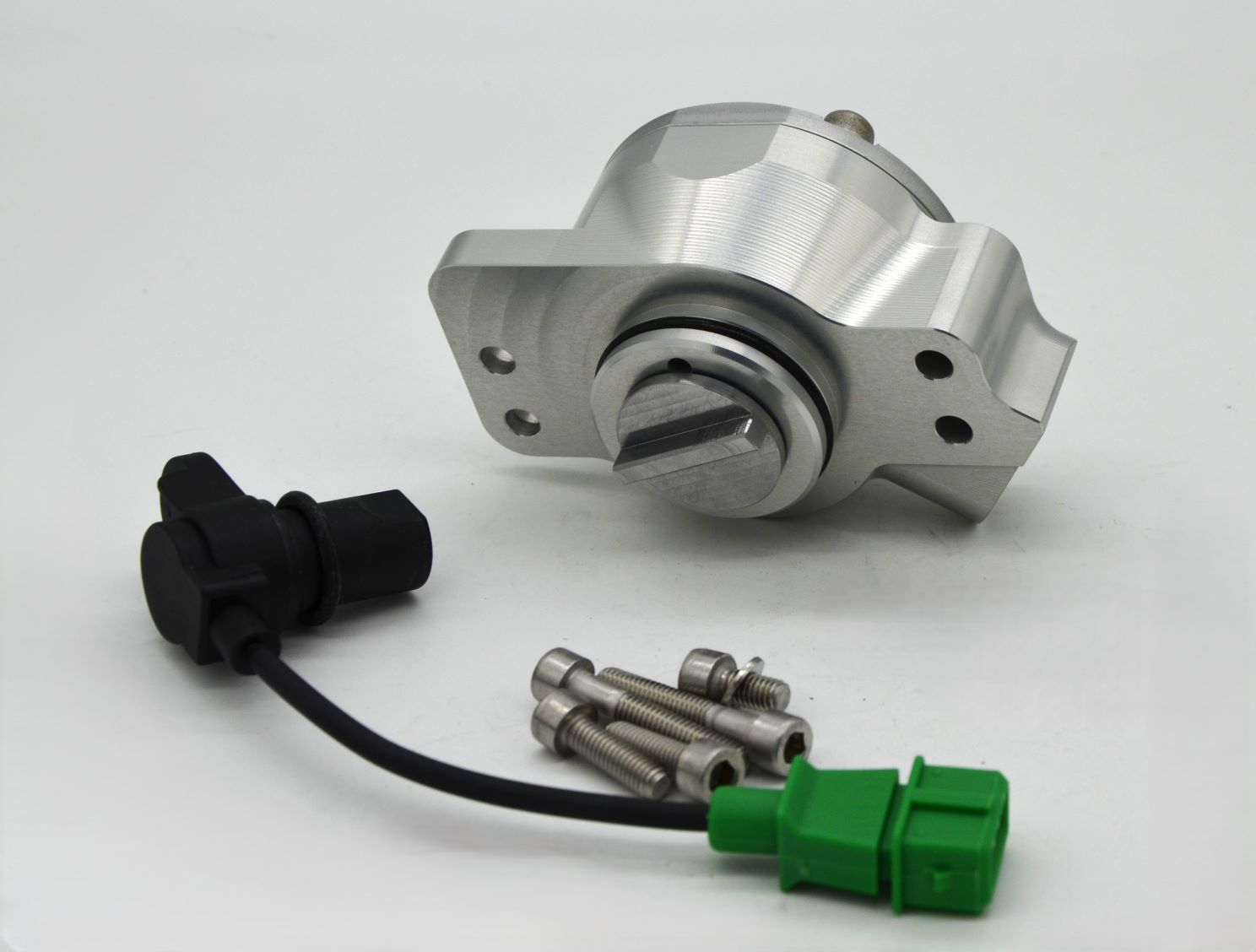

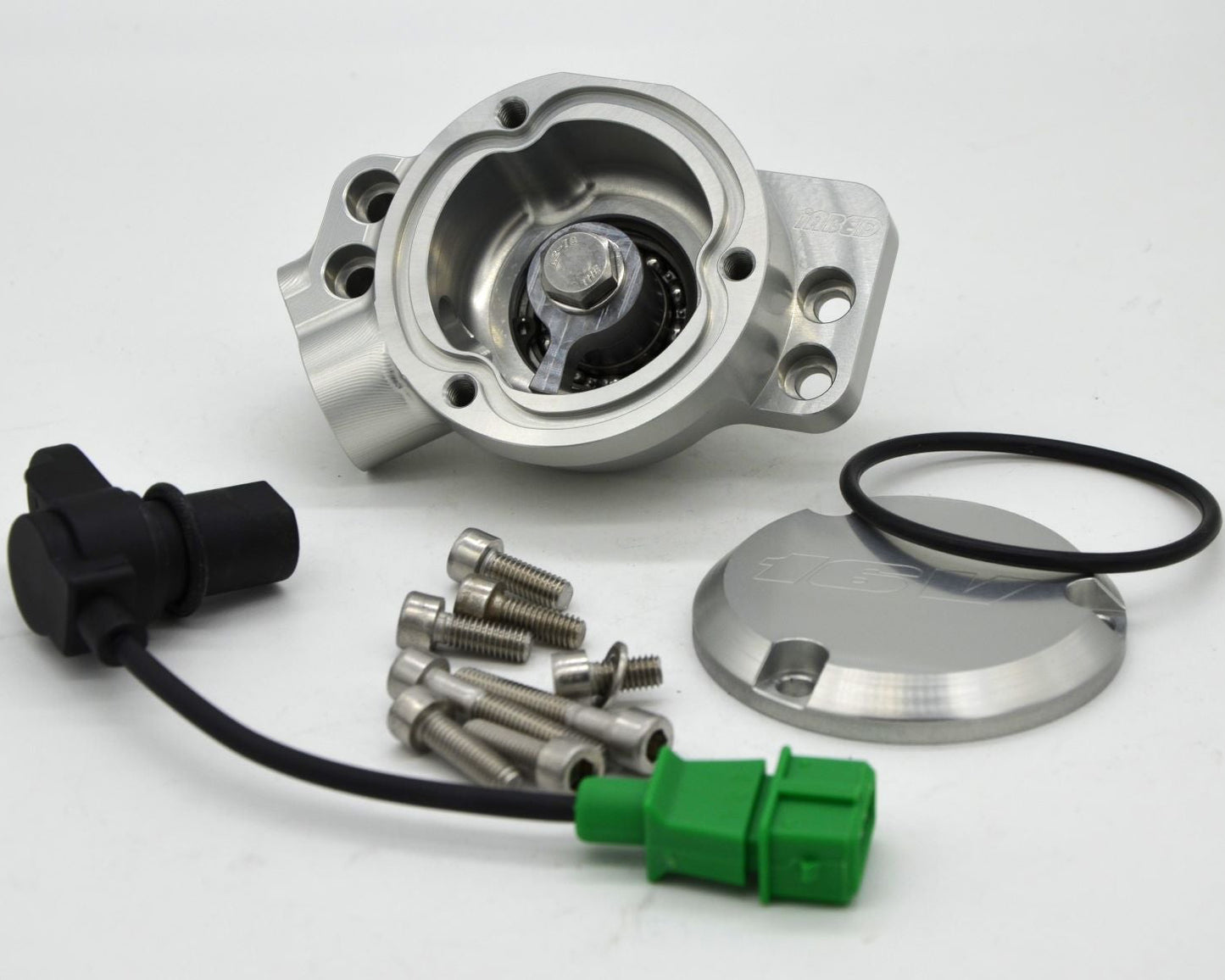

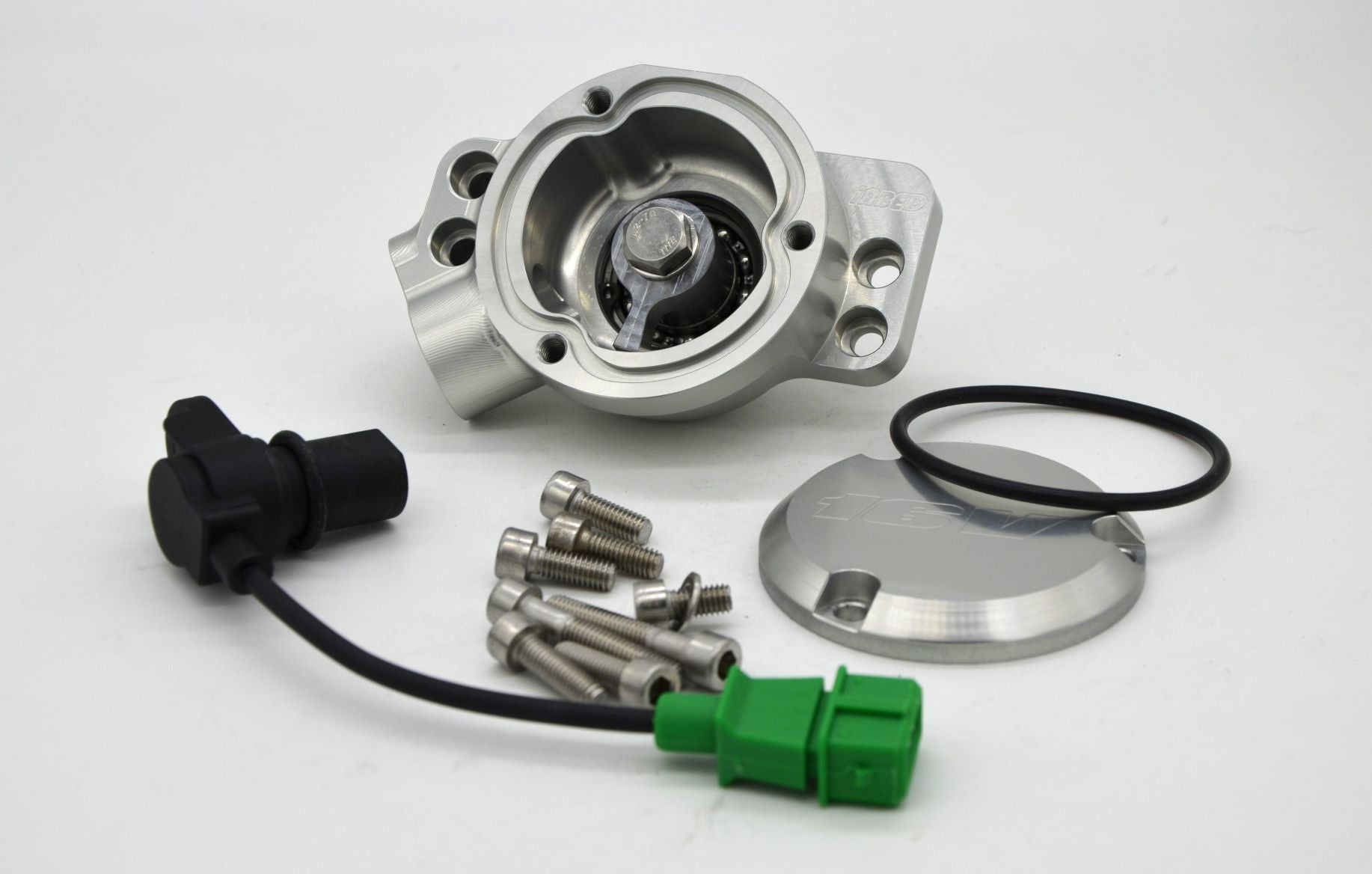

Components includes:

• (1) Machined T6061 hall sensor housing
• (1) Machined T6061 hall sensor housing cover "16V logo"
• (1) Camshaft position sensor w/seal
• (1) 38 x 3mm N70 O-ring

• (1) 60 x 3mm N70 O-ring
• (1) M6 x 12mm stainless steel socket cap screw
• (3) M6 x 16mm stainless steel socket cap screw
• (2) M6 x 20mm stainless steel socket cap screw
• (2) M6 x 35mm stainless steel socket cap screw
• (1) M6 stainless steel washer

Additional: Hall Sensor kit adds on:

• (1) NOTHING.

Special notes:
The first generation kit required the camshaft to be drilled and tapped .
The second generation kit required sourcing OEM parts but was Plug & Play.
The third generation (This kit) is PLUG and PLAY with no additional parts or drilling required.

Technical Notes:
Leading edge of the 1-window trigger wheel is 52° BTDC (104° on the crankshaft)
