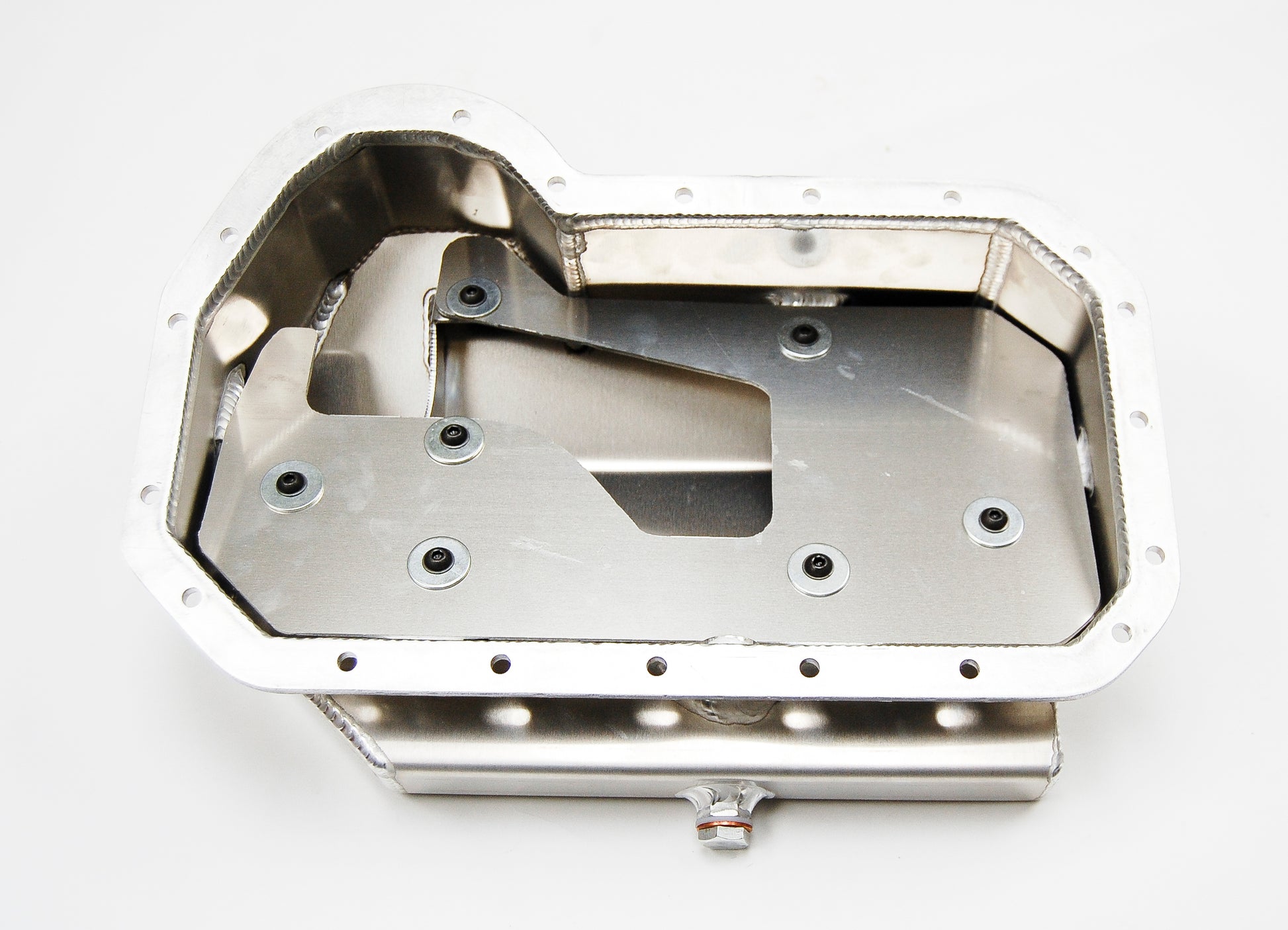

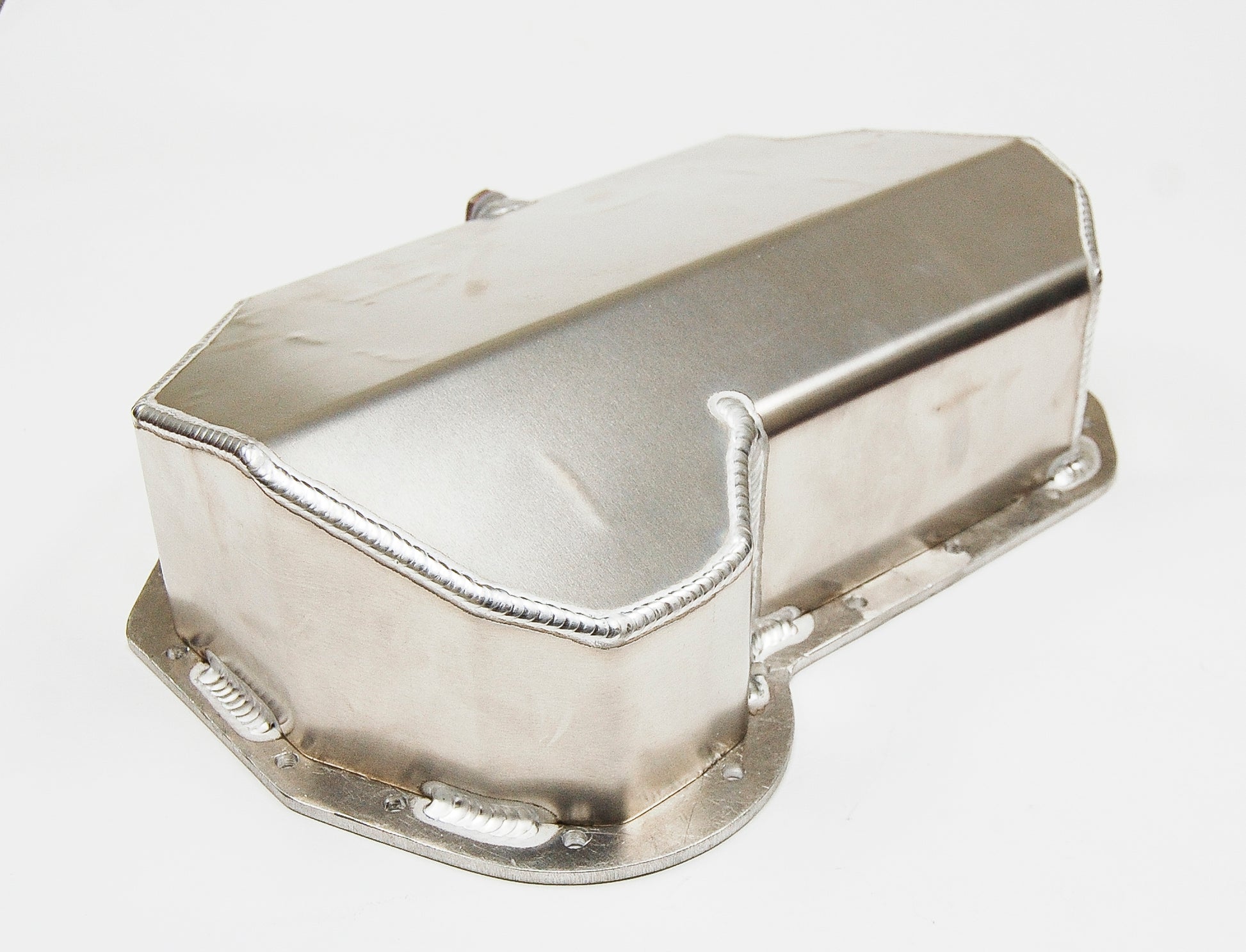

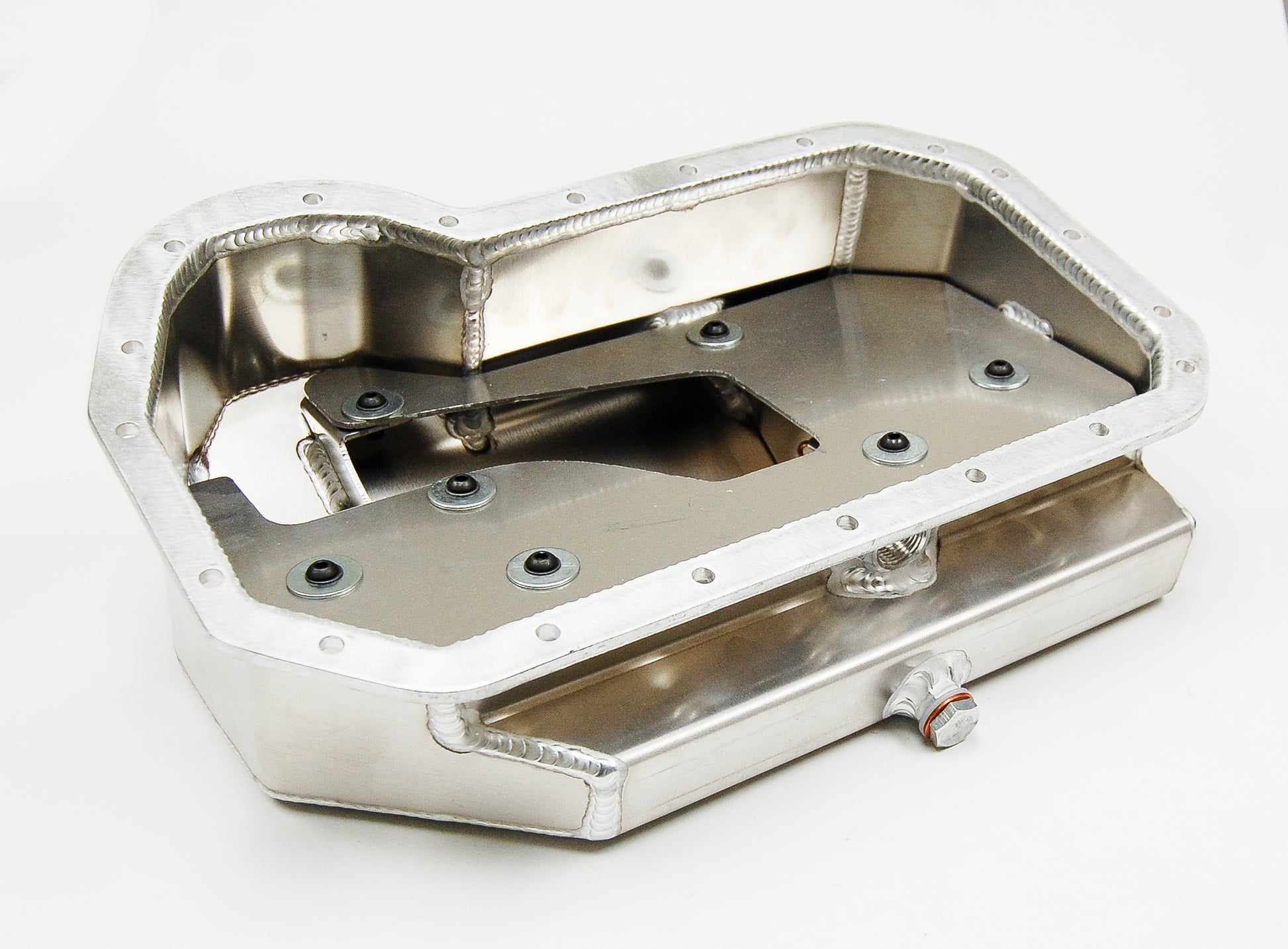

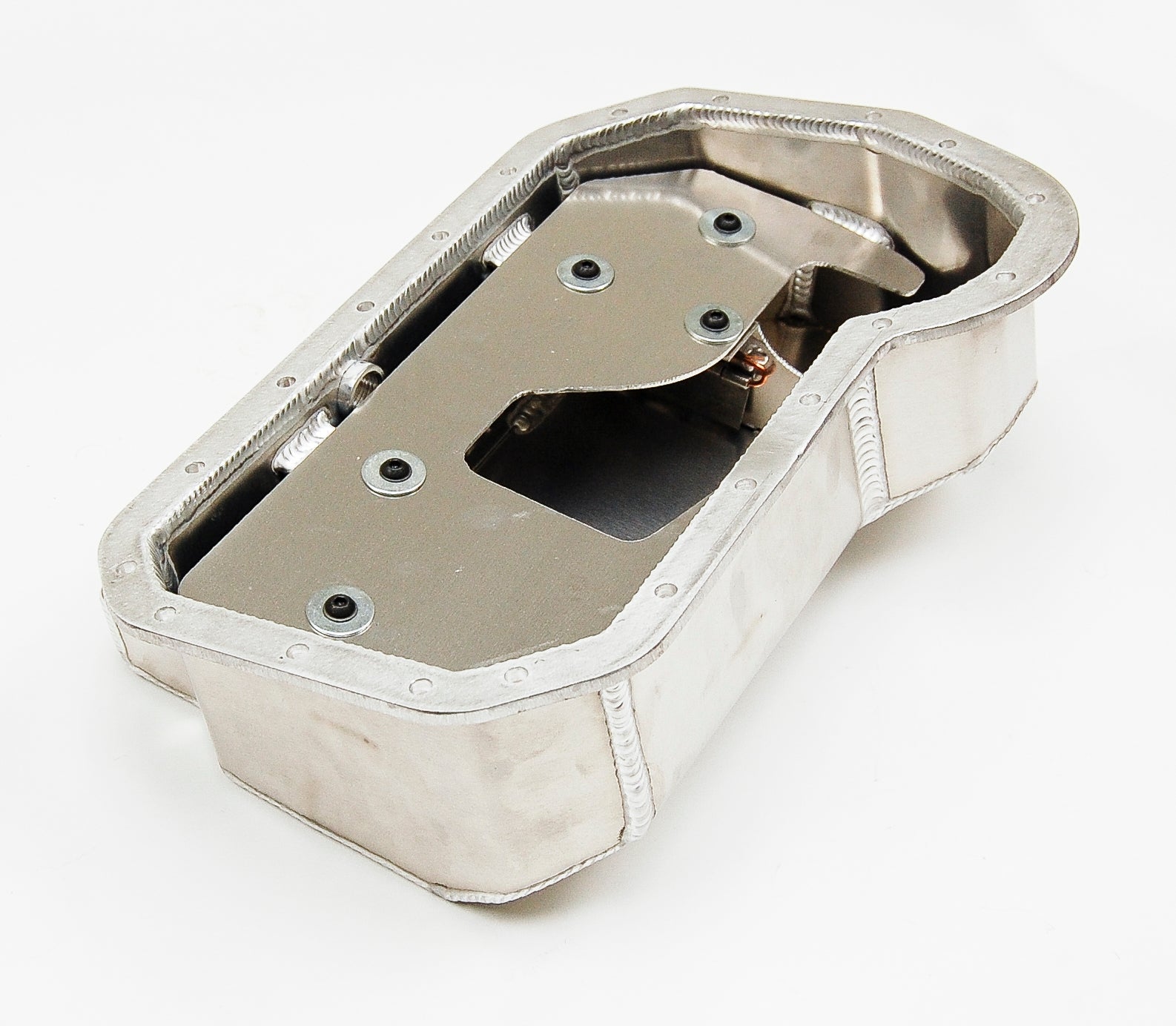

VW827 - 8V / 16V & 058 20V - Aluminum Baffled

The ultimate oil pan solution for your high-performance application.
Key features include:

• Full aluminum construction.

• T6061 CNC machined pan rail and oil level sensor provision plate.

• Sheet aluminum construction on the outer body for longevity and corrosion resistance.

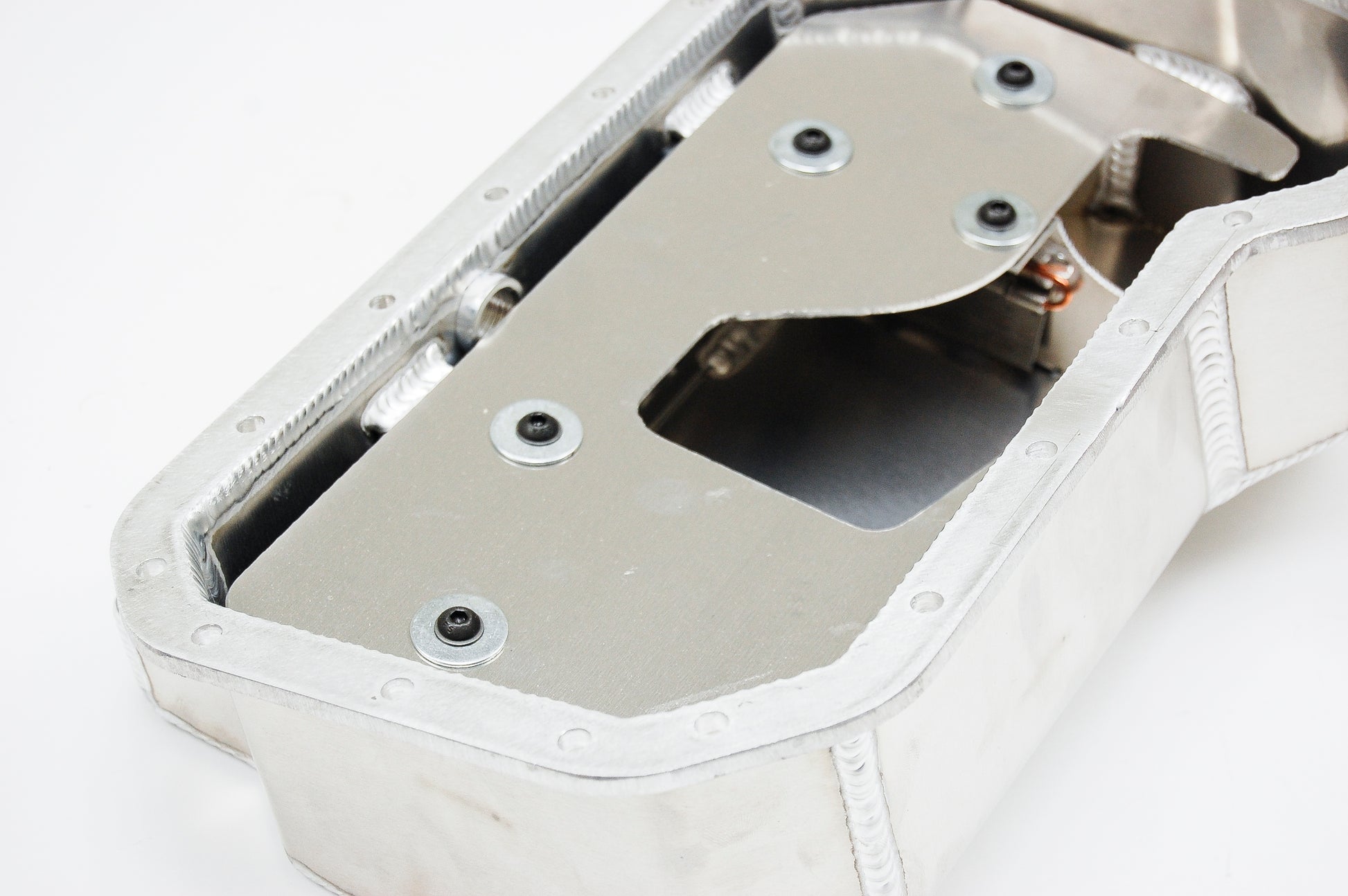

• Complete baffle system that prevents oil from sliding up the walls of the crankcase through hard cornering.

• Trap door basket design maintains oil around the OE pickup tube at all times, making it perfect for track racers, weekend warriors, or even grocery getters.

• 0.6L kicked-out bucket at the rear of the pan to increase oil capacity without raising the minimum height of the oil level.

• 10-AN female fitting for oil return that sits above the oil level (unlike the OEM).

• ¾-16” magnetic drain plug as standard.

• Optional 10-AN female port at the front of the oil pan for catch can oil return (or supercharger applications).

N.B. Fits all VW827 8V & 16V Engine blocks as well as the AEB / ADR 058 1.8 20V Audi Engine
