VW827 "ABF Style" Alternator Bracket — Bracket Only
VW827 "ABF Style" Alternator Bracket — Bracket Only
Bracket-only listing
This listing is for the alternator bracket only, not a complete alternator kit. The alternator, pulleys, belt and other components described in the configurable-kit reference below are not all included in the base price.

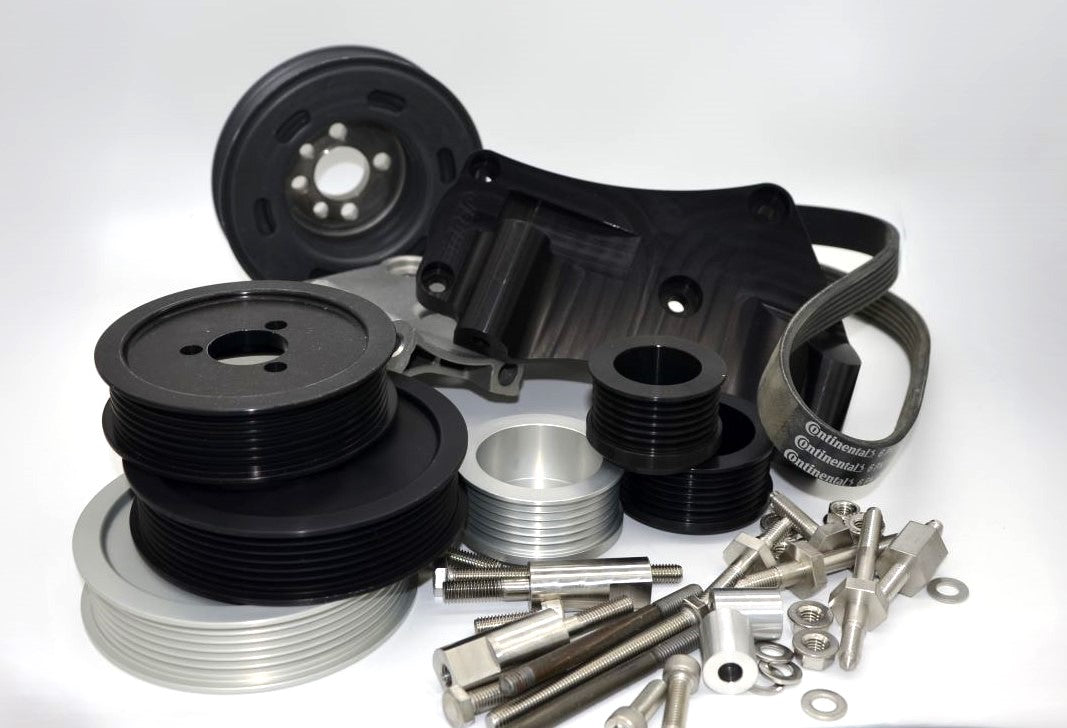

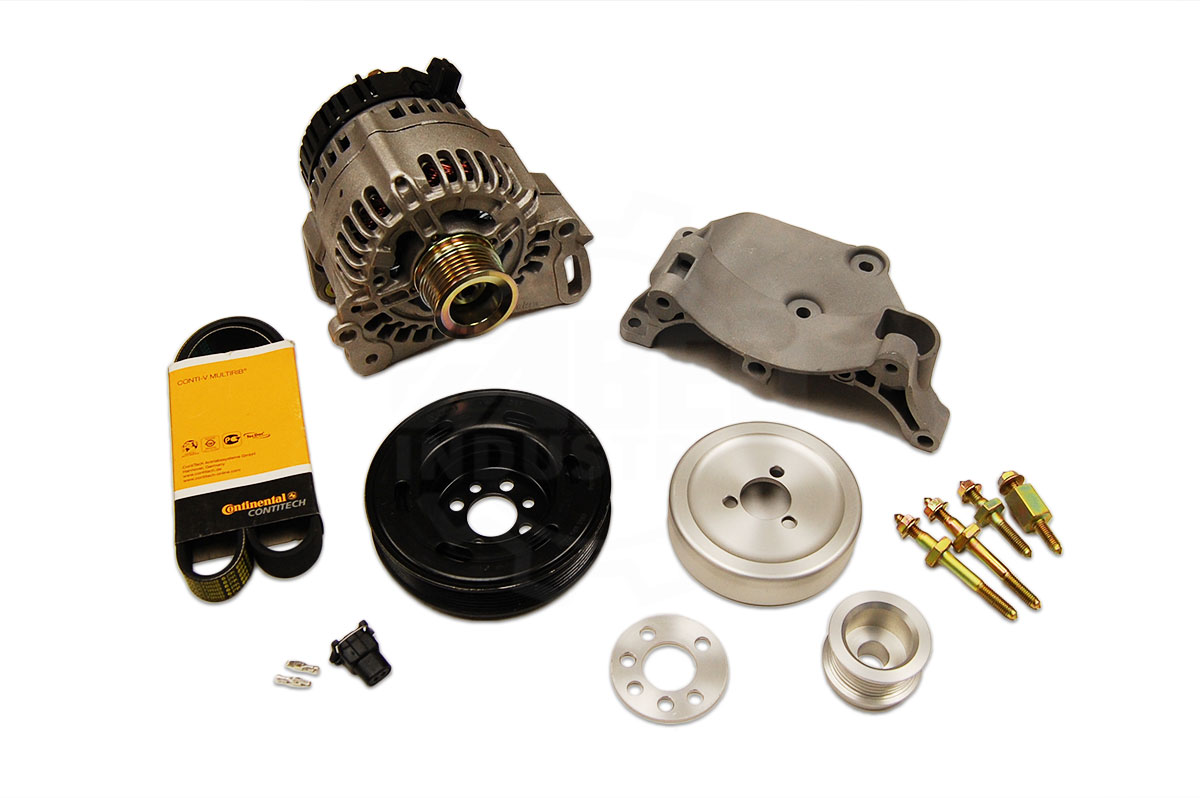

The photos and configurable-system parts lists are not a packing list for this bracket-only offer. Please contact us to confirm the bracket version and included mounting hardware, and its suitability for your engine, before ordering.
If you need a complete kit or extra components, contact us for a confirmed configuration and quote. Do not assume that the full-kit hardware list below is supplied with the bracket-only product.
iABED has been proudly supplying the “ABF Style” adjustable alternator kit for over 2 decades first offering these kits in 2005. Over the years we have revised the product offering to make it easier for enthusiast to either piece together there own kit or purchase an all in one kit from us. This will be the final iteration of the bracket as we make way for our own in house product offering with a modular design to tackle to modern enthusiasts concerns (A/C , power steering , etc).
About the kit:

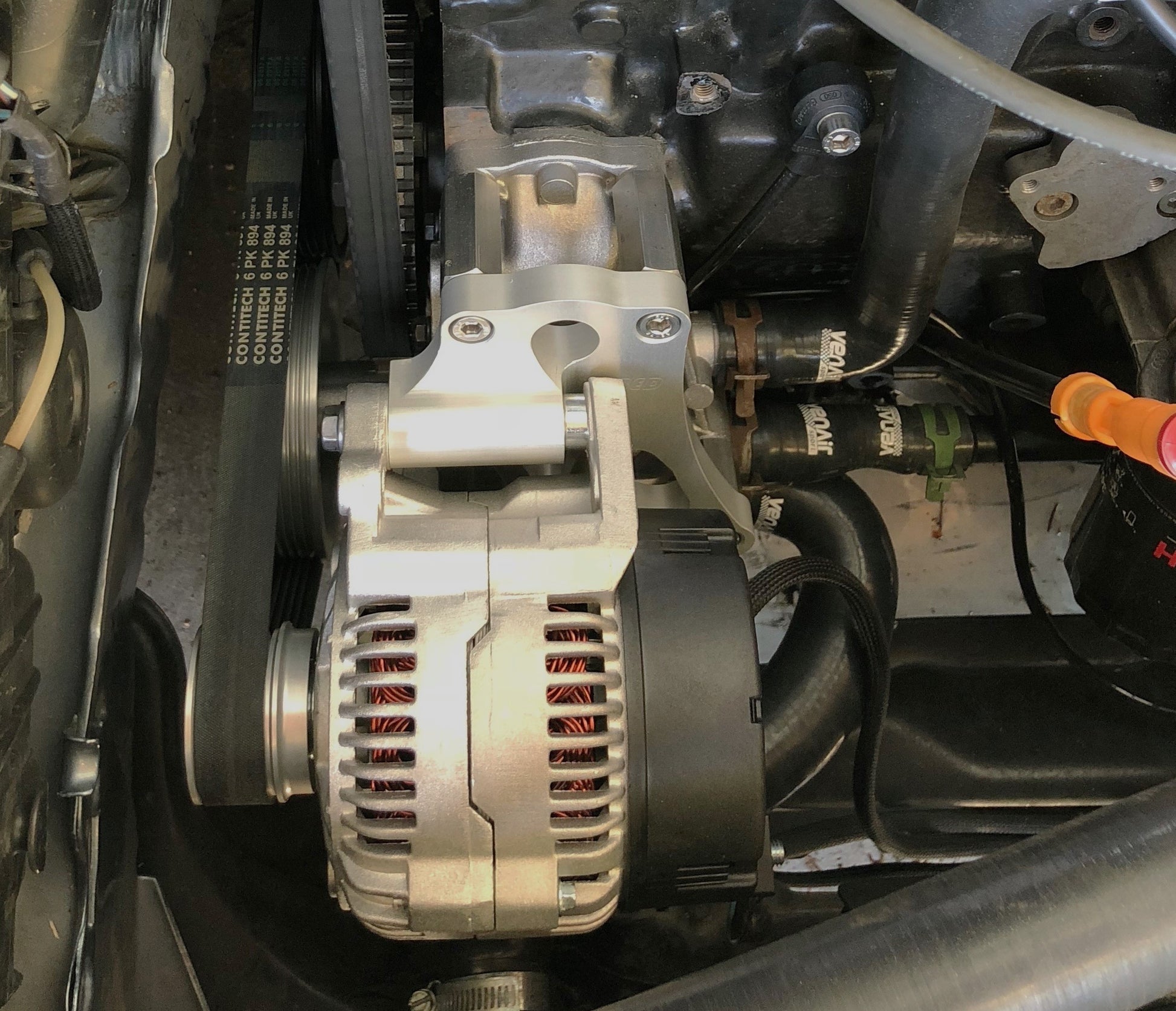

The ABF engine never arrived on North American shores, making "ABF" engine components highly sought after by enthusiasts. In 2005, iABED Industries took on the challenge of securing the VW827 Non-AC alternator setup, manufacturing any unavailable components in-house. Since then, we have supplied over 1500 VW827 Non-AC alternator kits (commonly known as ABF kits) to enthusiasts worldwide. Our setup bolts up to practically any VW/Audi/Seat/Skoda pre-1999 water-cooled VW827 4-cylinder engine block.
The listed base price is for the alternator bracket only. Additional components and complete-kit configurations require a separately confirmed quote.
Key Features Include:

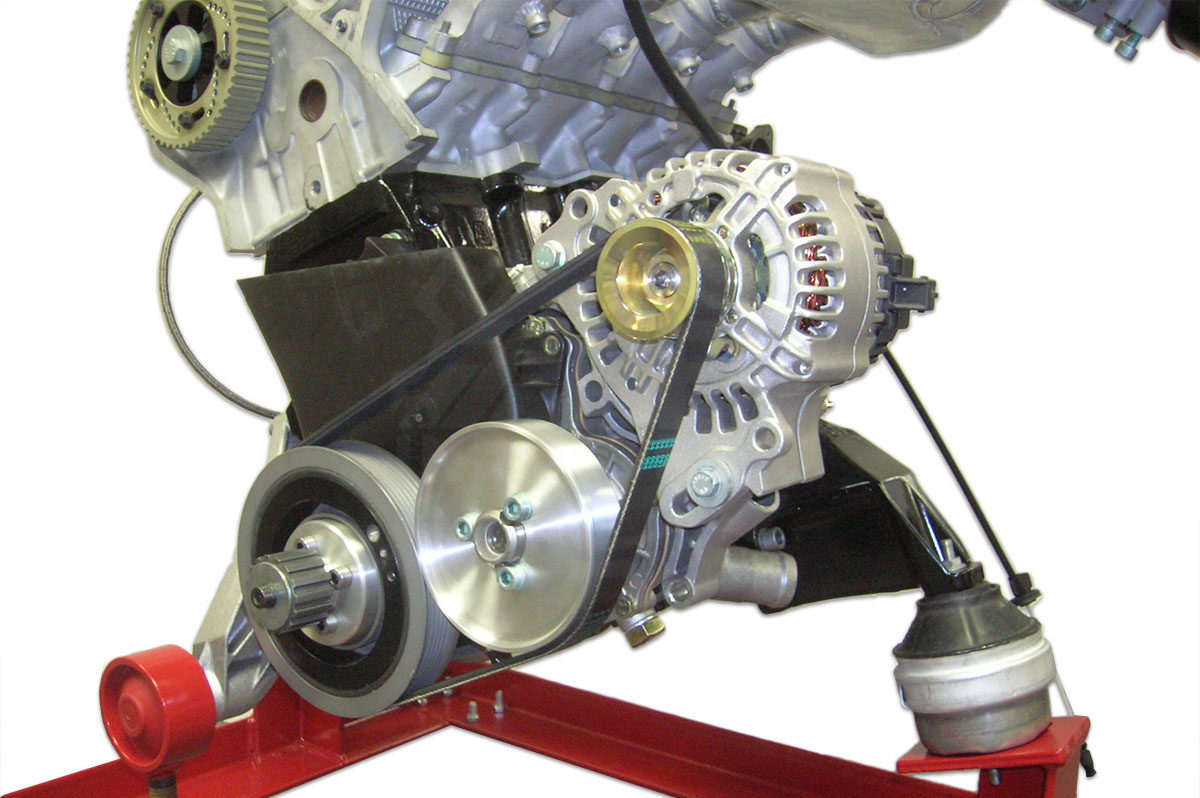

- Adjustable serpentine belt setup that eliminates the need for external belt tensioners.
- Adjustable arm integrated into the alternator housing for tensioning.

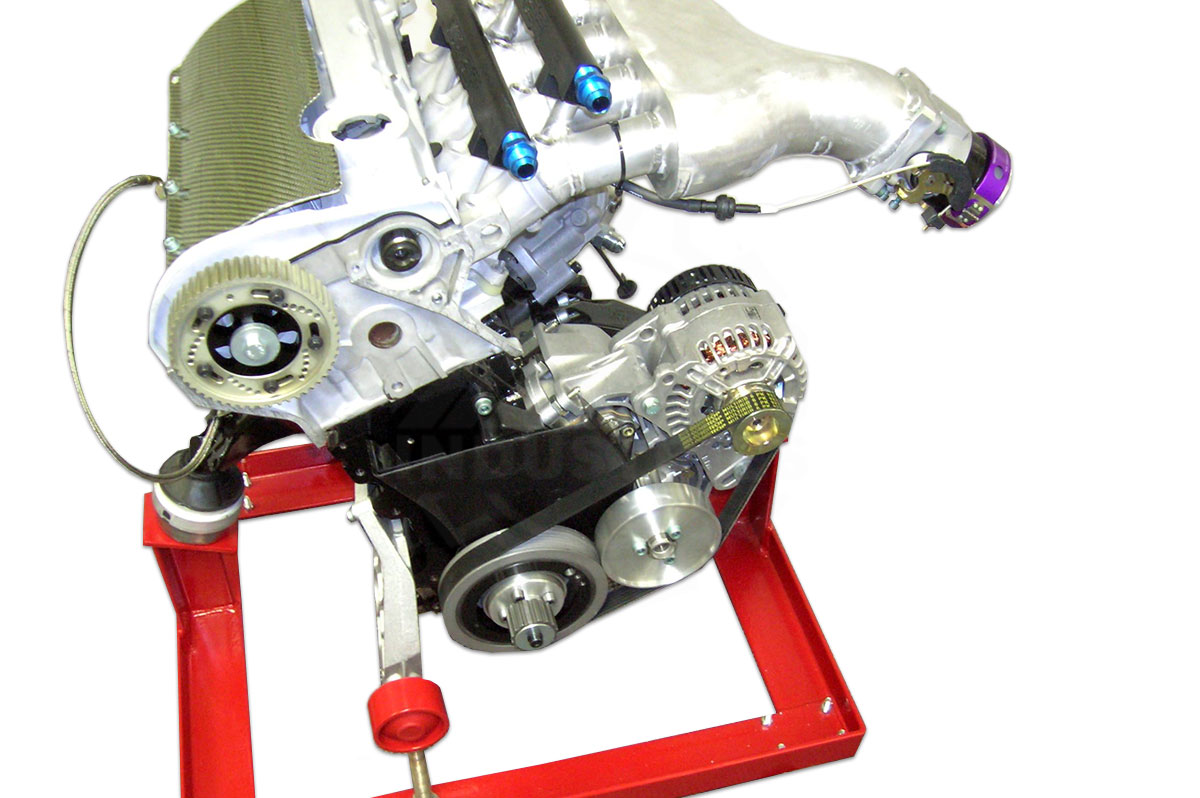

- Positions the alternator low enough to clear ITBs (Individual throttle bodies) on 8V crossflow and 16V setups.
Compatible Engine Codes:
- ABA, ABF, 2E, JH, PG, PL, 6A, 9A, KR, AEB, ADR, AJL, and others.
Previous versions of the kit used the ABA crankshaft accessory pulley (037105243A) with rear machining for 16V engines. Since this part is no longer available, we now use the 1.8T 20V 06A crankshaft accessory pulley and supply a spacer to bring the pulleys into the same plane. 8V engines require a 12.2mm spacer, and 16V engines require a 6.2mm spacer. Contact us to confirm the appropriate engine configuration before ordering.

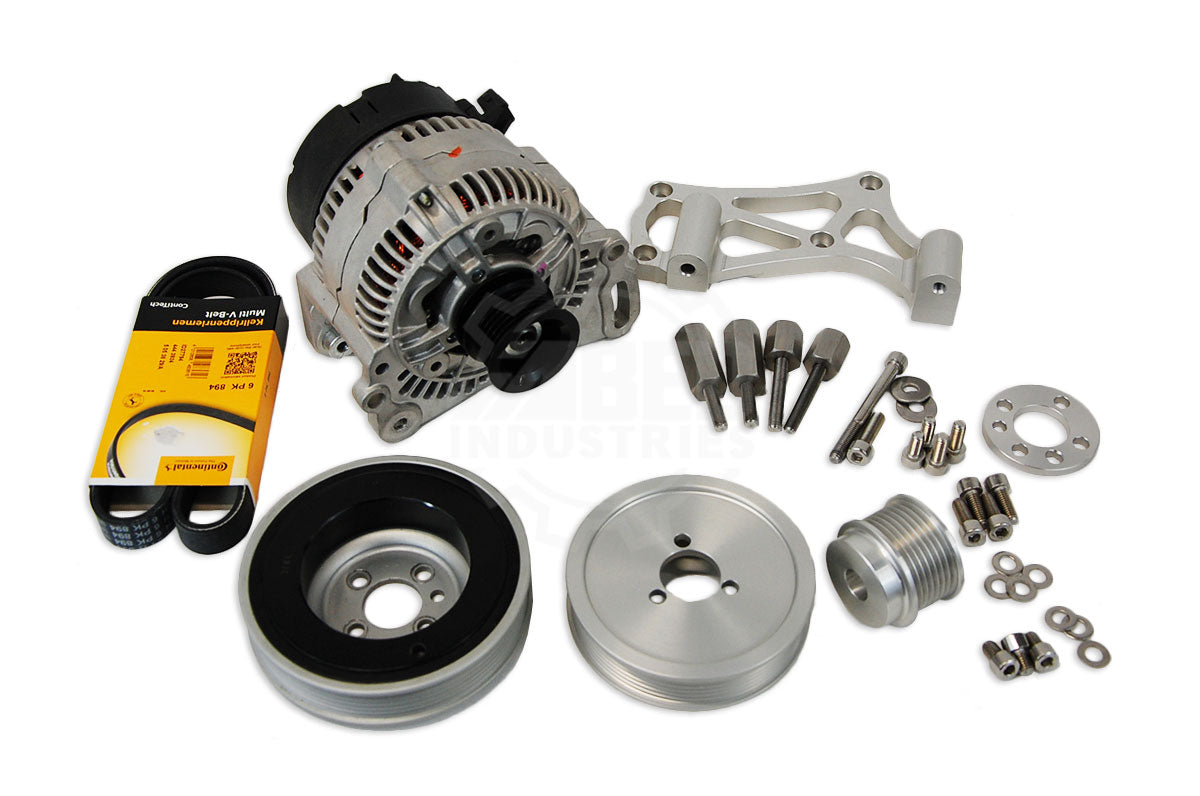

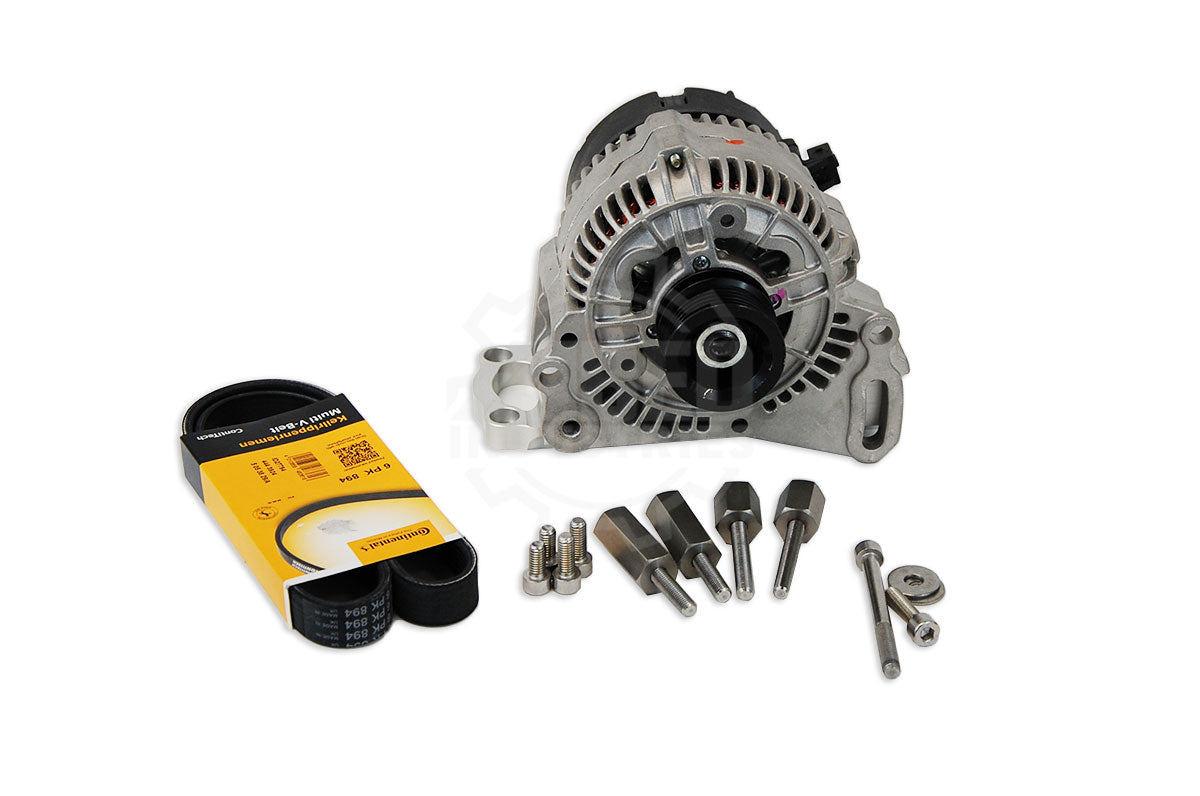

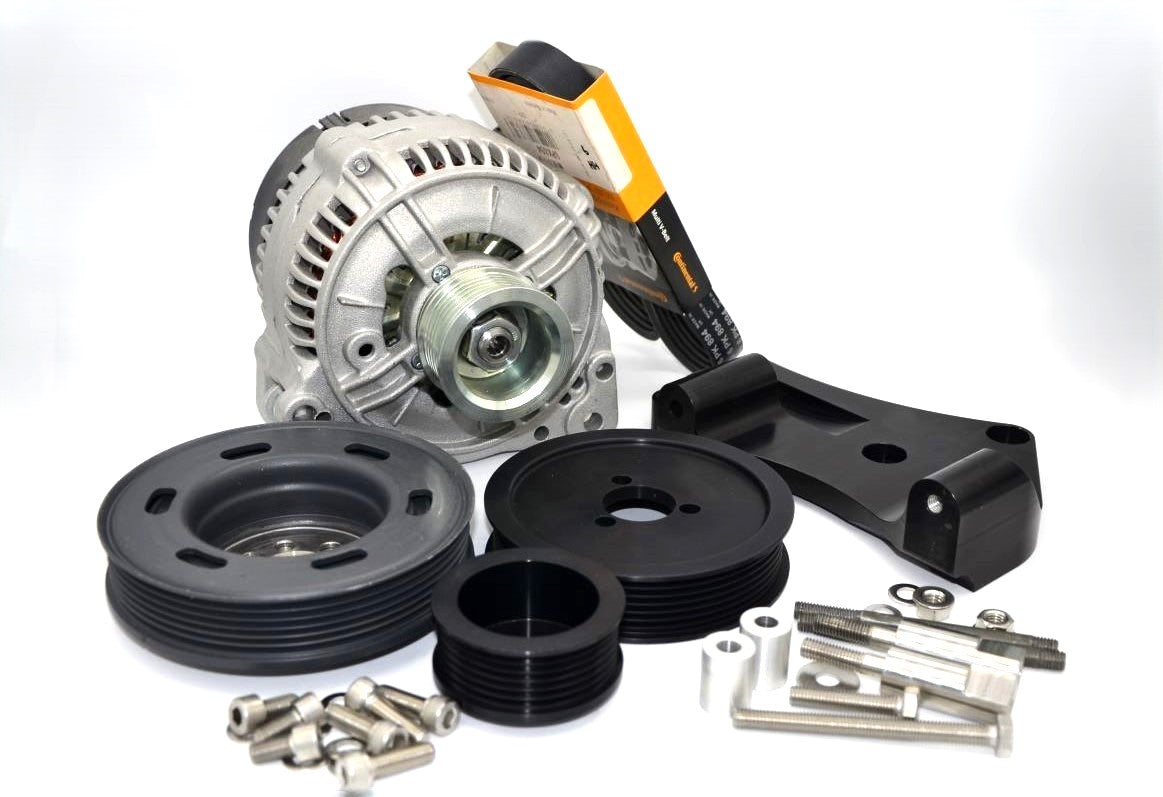

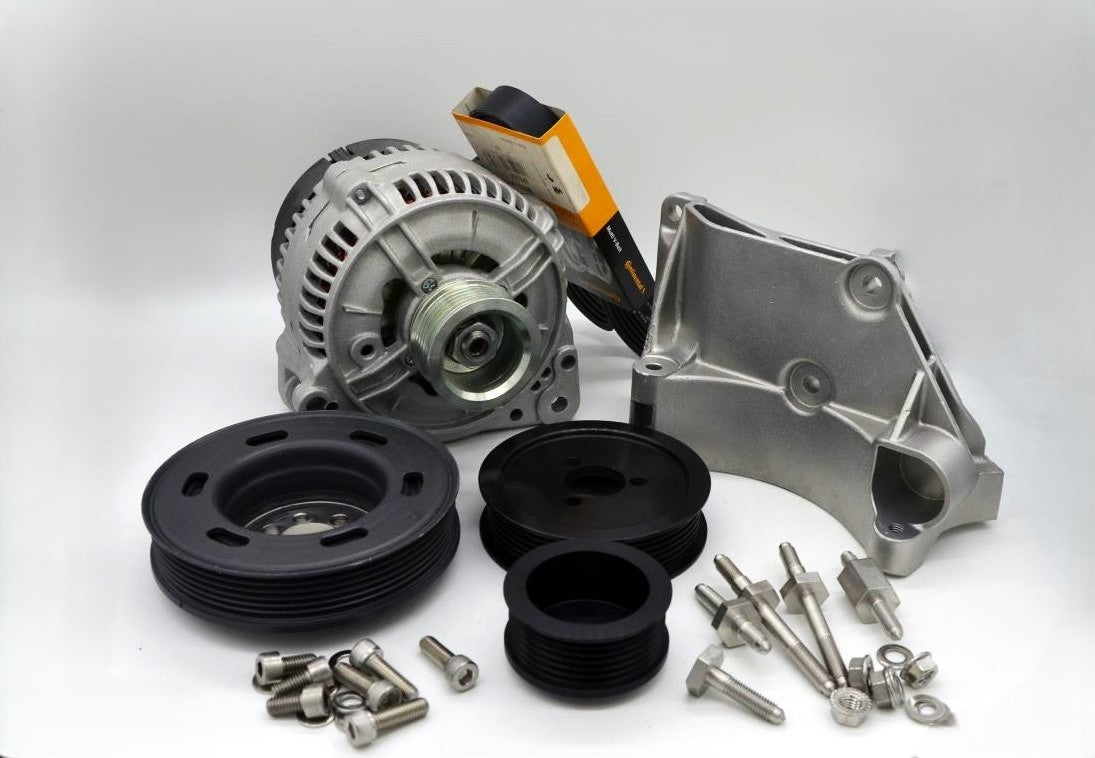

CONFIGURABLE KIT REFERENCE — NOT BRACKET-ONLY CONTENTS | ||
PART NUMBER |
DESCRIPTION |
QUANTITY |
AL0185X/037 903 137 |
90A Alternator |
1 |
029803143AD |
ABF Alternator Bracket |
1 |
06A105243F |
1.8T 06A Serpentine Accessory Pulley |
1 |
- |
T6061 Crankshaft Hub to Accessory Spacer |
1 |
037121030A |
T6061 Water Pump Pulley |
1 |
- |
T6061 Alternator Pulley |
1 |
- |
Continental 6PK-894 Belt |
1 |
- |
iABED ABF Hardware Kit |
1 |
TOTAL |
8 |
|
The iABED ABF Hardware kit includes every bolt needed for installation depending on the selection.
- SCS = Socket Cap Screw
- CSCS = Countersunk Socket Cap Screw
- SS = Stainless Steel
- ZP = Zinc Plated steel
Configurable-kit hardware reference — not confirmed bracket-only contents:
- M8 x 90 SCS – SS - Alternator Upper Bolt.
- M8 ZP Washer - Alternator Upper Bolt.
- M8 x 35 SCS – SS – Alternator Lower Bolt.
- M8 ZP Fender Washer – Alternator Lower Bolt.
- M8 x 45 SCS – SS – Crank Pulley (x4).
- M8 ZP Washer - Crank Pulley (x4).
- M8 x 16 SCS – SS – Water Pump Pulley (x3).
- M8 x 1.25 x 65mm Stud – Water Pump Upper Left Stud.
- M8 x 35 CSCS – SS – Water Pump Upper Right Bolt.
- M8 x 1.25 x 95mm Stud – Water Pump Lower Left Stud (x2).
- M8 x 1.25 x 40mm Stud – ABF Bracket Upper Right Stud.
- 6mm Spacers (x2).
- M8 SS Flange Nuts (x4).
Please Note:
- The alternator supplied comes with a one-year warranty to the original purchaser.
