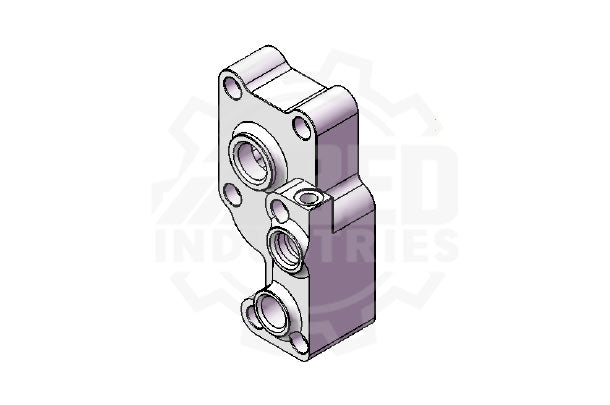

VW827 Crankcase Breather box w/remote oil filter feed plate
VW827 Crankcase Breather box w/remote oil filter feed plate
Regular price
$299.00 USD
Regular price
Sale price
$299.00 USD
Quantity
Couldn't load pickup availability
Ideal solution for those looking for a better crankcase breather box and remote oil filter feed block all in one.
Applications include all watercooled early 20V (AEB/ADR/AJL), 16V’s and 8V engines.
Key features include:
- Stainless steel back plate for breather with multi hole punch. Breather box contains steel wool.
- AN-12 crankcase breather port.
- (2) AN-10 connection for remote oil filter feed and return.
- M12 x 1.5 female thread for either turbocharger or supercharger filtered oil feed.
- OEM Volkswagen Oil check valve to maintain oil in cylinder head once oil pump is shut off.
- T6061 billet aluminum construction.
| BUILD OF MATERIALS | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QUANTITY |
| - | Breather box without oil filter feed | 1 |
| - | M8 x 1.25 x 50mm stainless steel socket cap screw | 4 |
| - | M8 x 1.25 x 65mm stainless steel socket cap screw | 3 |
| - | OEM Check valve | 1 |
| - | 12-AN ORB Male union fitting (Black only) | 1 |
| - | 10-AN ORB Male union fitting (Black only) | 2 |
| - | M12 x 1.5 to 4-AN male union (for turbocharger or supercharger oil feed) | 1 |
| TOTAL | 13 | |
Please Note:
- You will need to specify if you have a PL or 9A block as the upper oil filter housing bolt is off by 8mm.
- If you attach a photograph to this order (in the Options section above) or send us a photograph after ordering, we will be able to identify which version you have.
- Remote oil filter options are available separately.
