VW827 Dry Sump feed block
VW827 Dry Sump feed block
Regular price
$225.00 USD
Regular price
Sale price
$225.00 USD
Quantity
Couldn't load pickup availability

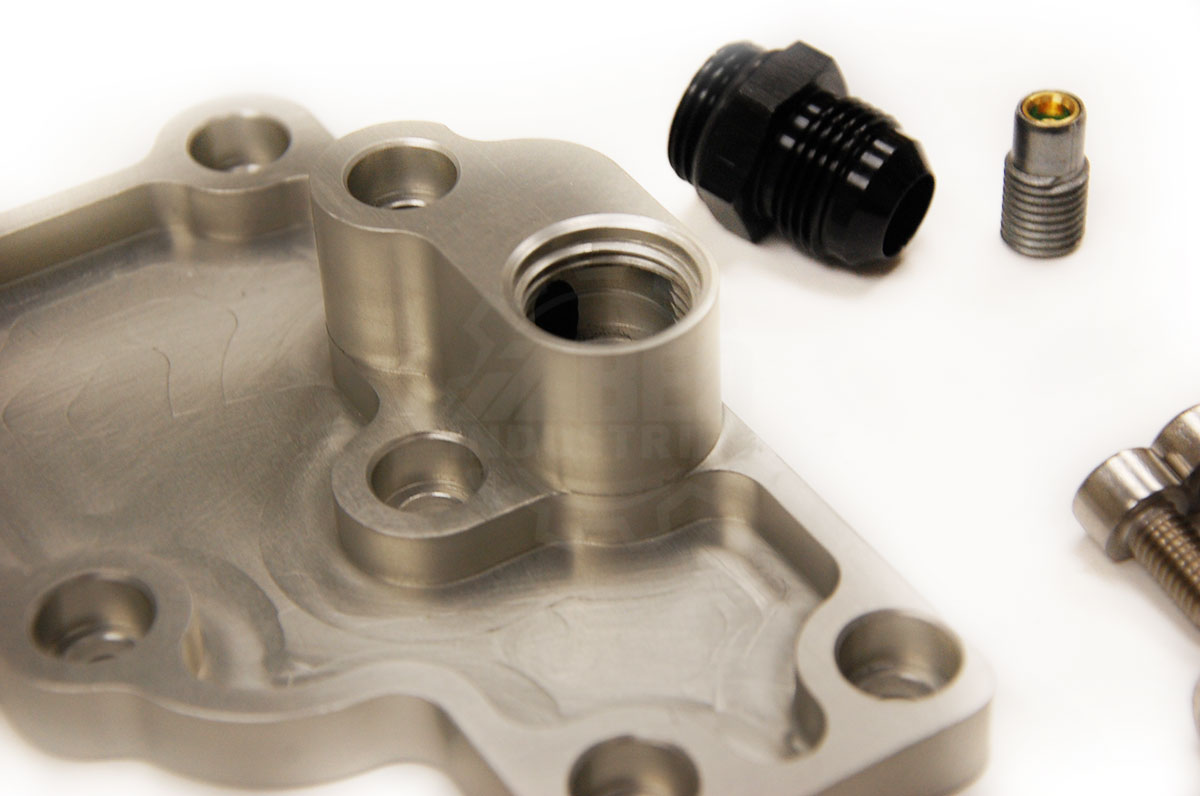

Feed plate with 10-AN female thread to allow pressurized oil to feed the motor.
Plate has an M12 check valve to regulate and maintain oil pressure in the cylinder head once the dry sump pump is off.
Application list:
- All water-cooled VW827 Volkswagen/Audi/Seat 8 valve
- All water-cooled VW827 Volkswagen/Audi/Seat 16 valve
Common Engine codes : ABF / ABA / 9A / 6A / KR / PG

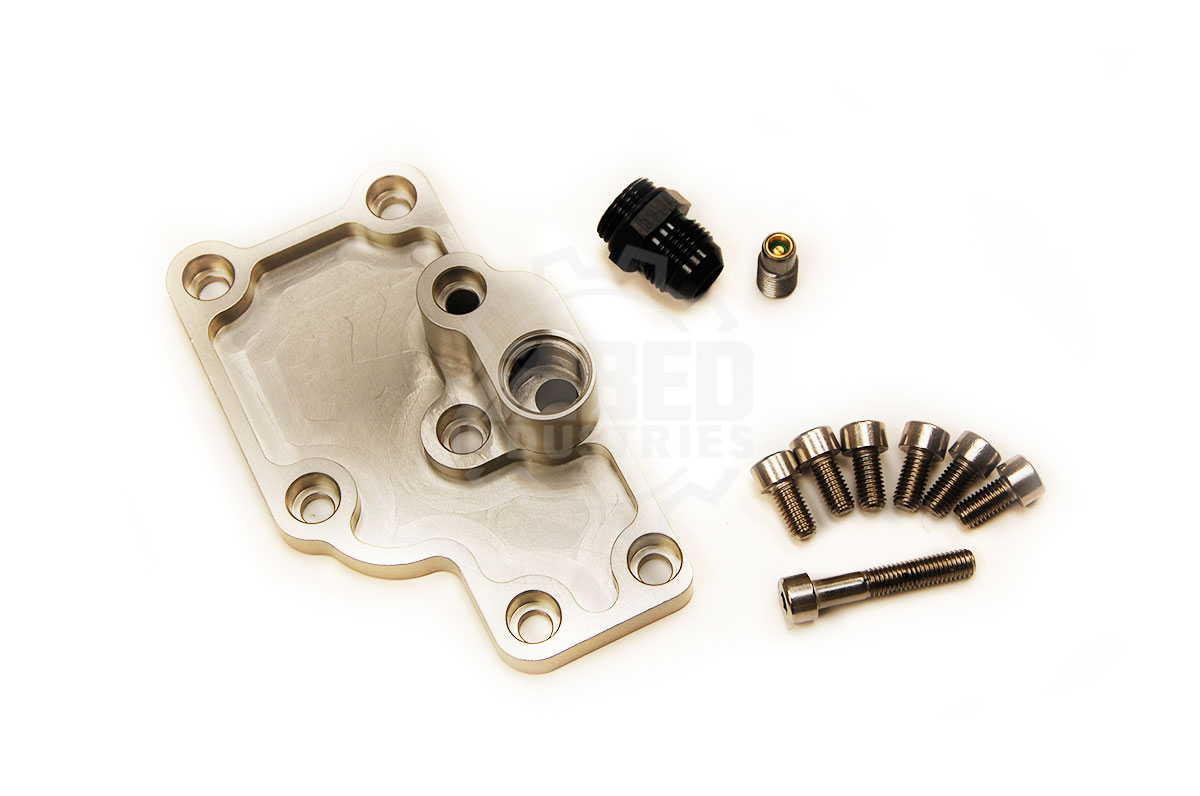

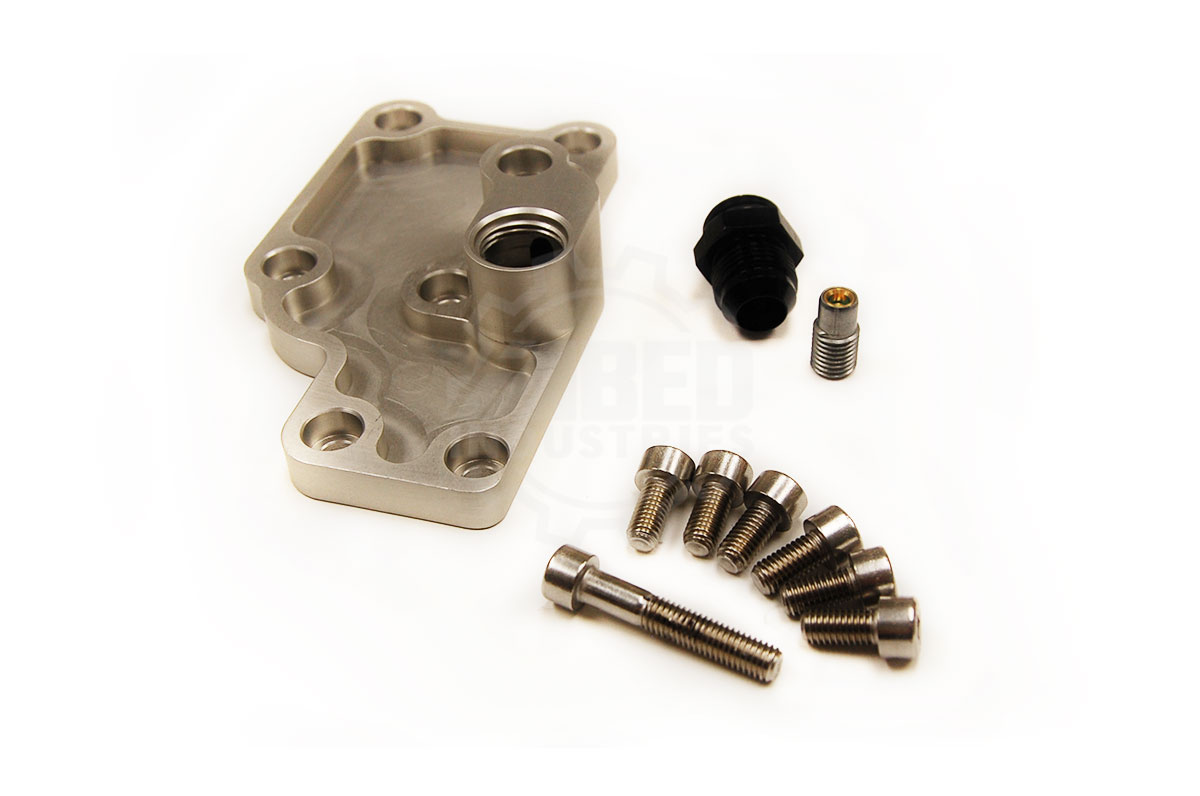

| BUILD OF MATERIALS | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QUANTITY |
| - | Feed block with 10-AN female thread | 1 |
| - | 10-AN JIC male union fitting | 1 |
| - | M12 x 1.5 OEM check valve | 1 |
| - | M8 x 1.25 x 25mm stainless steel socket cap screws | 6 |
| - | M8 x 1.25 x 60mm stainless steel socket cap screw | 1 |
| TOTAL | 10 | |
Please Note:
- This feed plate is designed to close off the crankcase, so additional ventilation will be required through the valve cover.
- This product is only available in clear anodized.
